Element xmcda:numericValue / integer
Namespace No namespace
Diagram
Diagram
Type xs:int
Properties
content simple
Source

<xs:element name="integer" type="xs:int"/>
Element xmcda:numericValue / real
Namespace No namespace
Diagram
Diagram
Type xs:double
Properties
content simple
Source

<xs:element name="real" type="xs:double"/>

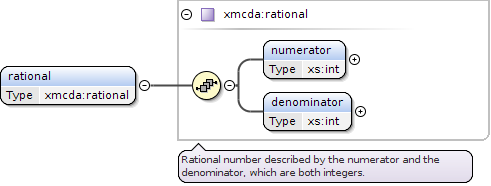

Element xmcda:numericValue / rational
Namespace No namespace
Diagram
Diagram XMCDA-3_1_1_xsd_Complex_Type_xmcda_rational.tmp#rational_numerator XMCDA-3_1_1_xsd_Complex_Type_xmcda_rational.tmp#rational_denominator XMCDA-3_1_1_xsd_Complex_Type_xmcda_rational.tmp#rational
Type xmcda:rational
Properties
content complex
Model
Children denominator, numerator
Instance

<rational>
  <numerator>{1,1}</numerator>
  <denominator>{1,1}</denominator>
</rational>
Source

<xs:element name="rational" type="xmcda:rational"/>

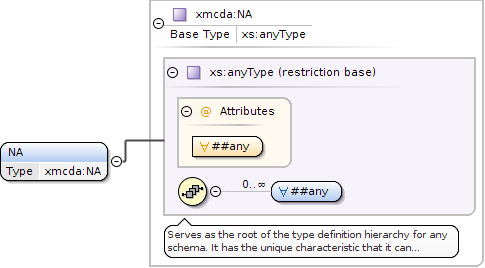

Element xmcda:numericValue / NA
Namespace No namespace
Diagram
Diagram XMCDA-3_1_1_xsd_Complex_Type_xmcda_NA.tmp#NA
Type xmcda:NA
Properties
content complex
Source

<xs:element name="NA" type="xmcda:NA"/>

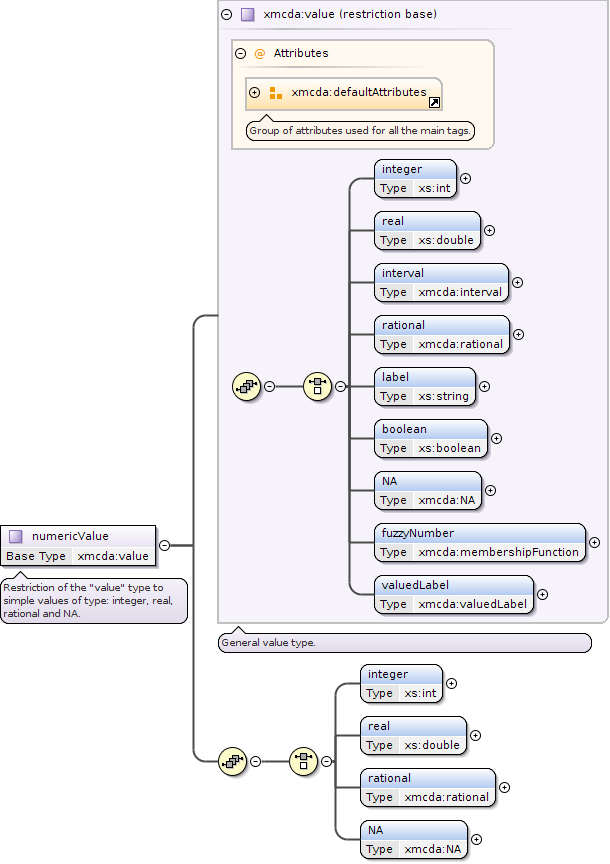

Complex Type xmcda:numericValue
Namespace http://www.decision-deck.org/2019/XMCDA-3.1.1
Annotations

Restriction of the "value" type to simple values of type: integer, real, rational and NA.
Diagram
Diagram XMCDA-3_1_1_xsd_Attribute_Group_xmcda_defaultAttributes.tmp#defaultAttributes XMCDA-3_1_1_xsd_Complex_Type_xmcda_value.tmp#value_integer XMCDA-3_1_1_xsd_Complex_Type_xmcda_value.tmp#value_real XMCDA-3_1_1_xsd_Complex_Type_xmcda_value.tmp#value_interval XMCDA-3_1_1_xsd_Complex_Type_xmcda_value.tmp#value_rational XMCDA-3_1_1_xsd_Complex_Type_xmcda_value.tmp#value_label XMCDA-3_1_1_xsd_Complex_Type_xmcda_value.tmp#value_boolean XMCDA-3_1_1_xsd_Complex_Type_xmcda_value.tmp#value_NA XMCDA-3_1_1_xsd_Complex_Type_xmcda_value.tmp#value_fuzzyNumber XMCDA-3_1_1_xsd_Complex_Type_xmcda_value.tmp#value_valuedLabel XMCDA-3_1_1_xsd_Complex_Type_xmcda_value.tmp#value XMCDA-3_1_1_xsd_Complex_Type_xmcda_numericValue.tmp#numericValue_integer XMCDA-3_1_1_xsd_Complex_Type_xmcda_numericValue.tmp#numericValue_real XMCDA-3_1_1_xsd_Complex_Type_xmcda_numericValue.tmp#numericValue_rational XMCDA-3_1_1_xsd_Complex_Type_xmcda_numericValue.tmp#numericValue_NA
Type restriction of xmcda:value
Type hierarchy
Used by
Model
Children NA, integer, rational, real
Attributes
QName Type Use Annotation
id xs:string optional
The id attribute allows to identify the underlying piece of data by a program.
mcdaConcept xs:string optional
The mcdaConcept attribute allows to specify to what mcda concept a tag is related. It is used by an algorithm to make choices which will have an influence on the output. The documentation of the program should therefore specify, if necessary, what mcdaConcept should be used for the input data. In particular, if an algorithm requires, among other things, twice the same input tag, they can be differenciated by the mcdaConcept (this is even mandatory if they are present in the same file, but should be optional if the two tags can be in different input files, or originate from two different programs). The algorithm should therefore not be too strict on these mcdaConcepts, as this will reduce the compatibility between the various programs.
name xs:string optional
The name attribute contains the human readable name of the object or concept.
Source

<xs:complexType name="numericValue">
  <xs:annotation>
    <xs:documentation>Restriction of the "value" type to simple values of type: integer, real, rational and NA.</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:restriction base="xmcda:value">
      <xs:sequence>
        <xs:choice>
          <xs:element name="integer" type="xs:int"/>
          <xs:element name="real" type="xs:double"/>
          <xs:element name="rational" type="xmcda:rational"/>
          <xs:element name="NA" type="xmcda:NA"/>
        </xs:choice>
      </xs:sequence>
    </xs:restriction>
  </xs:complexContent>
</xs:complexType>
