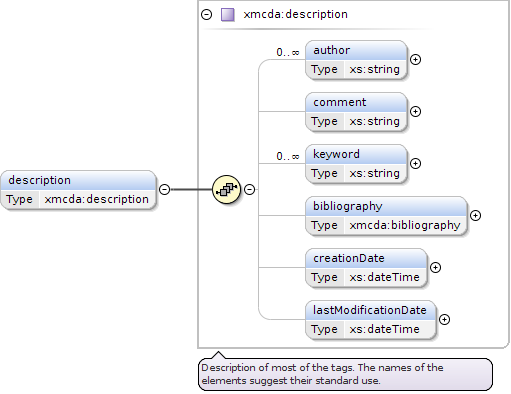

Element xmcda:alternatives / description
Namespace No namespace
Diagram
Diagram XMCDA-3_1_1_xsd_Complex_Type_xmcda_description.tmp#description_author XMCDA-3_1_1_xsd_Complex_Type_xmcda_description.tmp#description_comment XMCDA-3_1_1_xsd_Complex_Type_xmcda_description.tmp#description_keyword XMCDA-3_1_1_xsd_Complex_Type_xmcda_description.tmp#description_bibliography XMCDA-3_1_1_xsd_Complex_Type_xmcda_description.tmp#description_creationDate XMCDA-3_1_1_xsd_Complex_Type_xmcda_description.tmp#description_lastModificationDate XMCDA-3_1_1_xsd_Complex_Type_xmcda_description.tmp#description
Type xmcda:description
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children author, bibliography, comment, creationDate, keyword, lastModificationDate
Instance

<description>
  <author>{0,unbounded}</author>
  <comment>{0,1}</comment>
  <keyword>{0,unbounded}</keyword>
  <bibliography id="" mcdaConcept="" name="">{0,1}</bibliography>
  <creationDate>{0,1}</creationDate>
  <lastModificationDate>{0,1}</lastModificationDate>
</description>
Source

<xs:element name="description" type="xmcda:description" minOccurs="0" maxOccurs="1"/>

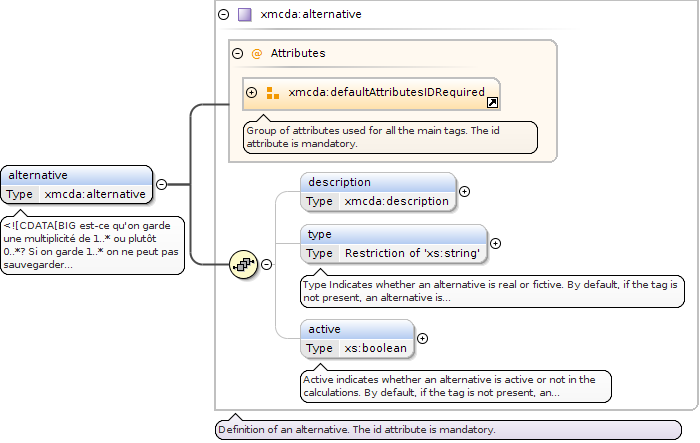

Element xmcda:alternatives / alternative
Namespace No namespace
Annotations

BIG est-ce qu'on garde une multiplicité de 1..* ou plutôt 0..*? Si on garde 1..* on ne peut pas sauvegarder d'<alternatives> sans alternative (p.ex., en cours de conception, avec quand même une partie des autres attributs remplis)
Diagram
Diagram XMCDA-3_1_1_xsd_Attribute_Group_xmcda_defaultAttributesIDRequired.tmp#defaultAttributesIDRequired XMCDA-3_1_1_xsd_Complex_Type_xmcda_alternative.tmp#alternative_description XMCDA-3_1_1_xsd_Complex_Type_xmcda_alternative.tmp#alternative_type XMCDA-3_1_1_xsd_Complex_Type_xmcda_alternative.tmp#alternative_active XMCDA-3_1_1_xsd_Complex_Type_xmcda_alternative.tmp#alternative
Type xmcda:alternative
Properties
content complex
minOccurs 1
maxOccurs unbounded
Model
Children active, description, type
Instance

<alternative id="" mcdaConcept="" name="">
  <description>{0,1}</description>
  <type>{0,1}</type>
  <active>{0,1}</active>
</alternative>
Attributes
QName Type Use Annotation
id xs:string required
The mandatory id attribute allows to identify the underlying piece of data by a program.
mcdaConcept xs:string optional
The mcdaConcept attribute allows to specify to what mcda concept a tag is related. It is used by an algorithm to make choices which will have an influence on the output. The documentation of the program should therefore specify, if necessary, what mcdaConcept should be used for the input data. In particular, if an algorithm requires, among other things, twice the same input tag, they can be differenciated by the mcdaConcept (this is even mandatory if they are present in the same file, but should be optional if the two tags can be in different input files, or originate from two different programs). The algorithm should therefore not be too strict on these mcdaConcepts, as this will reduce the compatibility between the various programs.
name xs:string optional
The name attribute contains the human readable name of the object or concept.
Source

<xs:element name="alternative" type="xmcda:alternative" minOccurs="1" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>
      <![CDATA[BIG est-ce qu'on garde une multiplicité de 1..* ou plutôt 0..*? Si on garde 1..* on ne peut pas sauvegarder d'<alternatives> sans alternative (p.ex., en cours de conception, avec quand même une partie des autres attributs remplis)]]>
    </xs:documentation>
  </xs:annotation>
</xs:element>

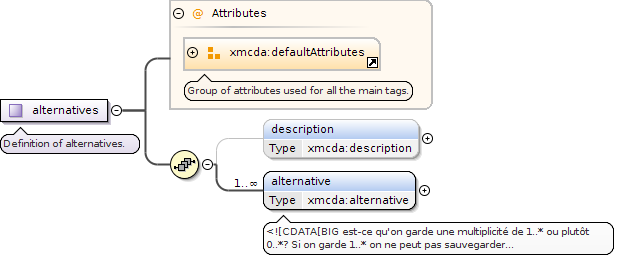

Complex Type xmcda:alternatives
Namespace http://www.decision-deck.org/2019/XMCDA-3.1.1
Annotations

Definition of alternatives.
Diagram
Diagram XMCDA-3_1_1_xsd_Attribute_Group_xmcda_defaultAttributes.tmp#defaultAttributes XMCDA-3_1_1_xsd_Complex_Type_xmcda_alternatives.tmp#alternatives_description XMCDA-3_1_1_xsd_Complex_Type_xmcda_alternatives.tmp#alternatives_alternative
Used by
Model
Children alternative, description
Attributes
QName Type Use Annotation
id xs:string optional
The id attribute allows to identify the underlying piece of data by a program.
mcdaConcept xs:string optional
The mcdaConcept attribute allows to specify to what mcda concept a tag is related. It is used by an algorithm to make choices which will have an influence on the output. The documentation of the program should therefore specify, if necessary, what mcdaConcept should be used for the input data. In particular, if an algorithm requires, among other things, twice the same input tag, they can be differenciated by the mcdaConcept (this is even mandatory if they are present in the same file, but should be optional if the two tags can be in different input files, or originate from two different programs). The algorithm should therefore not be too strict on these mcdaConcepts, as this will reduce the compatibility between the various programs.
name xs:string optional
The name attribute contains the human readable name of the object or concept.
Source

<xs:complexType name="alternatives">
  <xs:annotation>
    <xs:documentation>Definition of alternatives.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="description" type="xmcda:description" minOccurs="0" maxOccurs="1"/>
    <xs:element name="alternative" type="xmcda:alternative" minOccurs="1" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>
          <![CDATA[BIG est-ce qu'on garde une multiplicité de 1..* ou plutôt 0..*? Si on garde 1..* on ne peut pas sauvegarder d'<alternatives> sans alternative (p.ex., en cours de conception, avec quand même une partie des autres attributs remplis)]]>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
  <xs:attributeGroup ref="xmcda:defaultAttributes"/>
</xs:complexType>
