Element xmcda:XMCDA
Namespace http://www.decision-deck.org/2019/XMCDA-2.2.3
Annotations

Root of the XMCDA element tree.

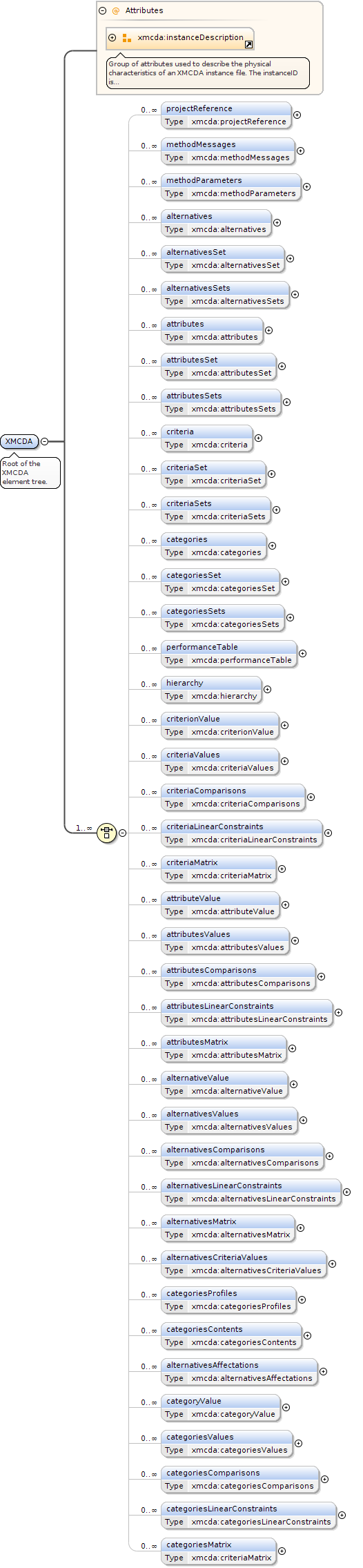

Diagram
Diagram XMCDA-2_2_3_xsd_Attribute_Group_xmcda_instanceDescription.tmp#instanceDescription XMCDA-2_2_3_xsd_Element_xmcda_XMCDA.tmp#XMCDA_projectReference XMCDA-2_2_3_xsd_Element_xmcda_XMCDA.tmp#XMCDA_methodMessages XMCDA-2_2_3_xsd_Element_xmcda_XMCDA.tmp#XMCDA_methodParameters XMCDA-2_2_3_xsd_Element_xmcda_XMCDA.tmp#XMCDA_alternatives XMCDA-2_2_3_xsd_Element_xmcda_XMCDA.tmp#XMCDA_alternativesSet XMCDA-2_2_3_xsd_Element_xmcda_XMCDA.tmp#XMCDA_alternativesSets XMCDA-2_2_3_xsd_Element_xmcda_XMCDA.tmp#XMCDA_attributes XMCDA-2_2_3_xsd_Element_xmcda_XMCDA.tmp#XMCDA_attributesSet XMCDA-2_2_3_xsd_Element_xmcda_XMCDA.tmp#XMCDA_attributesSets XMCDA-2_2_3_xsd_Element_xmcda_XMCDA.tmp#XMCDA_criteria XMCDA-2_2_3_xsd_Element_xmcda_XMCDA.tmp#XMCDA_criteriaSet XMCDA-2_2_3_xsd_Element_xmcda_XMCDA.tmp#XMCDA_criteriaSets XMCDA-2_2_3_xsd_Element_xmcda_XMCDA.tmp#XMCDA_categories XMCDA-2_2_3_xsd_Element_xmcda_XMCDA.tmp#XMCDA_categoriesSet XMCDA-2_2_3_xsd_Element_xmcda_XMCDA.tmp#XMCDA_categoriesSets XMCDA-2_2_3_xsd_Element_xmcda_XMCDA.tmp#XMCDA_performanceTable XMCDA-2_2_3_xsd_Element_xmcda_XMCDA.tmp#XMCDA_hierarchy XMCDA-2_2_3_xsd_Element_xmcda_XMCDA.tmp#XMCDA_criterionValue XMCDA-2_2_3_xsd_Element_xmcda_XMCDA.tmp#XMCDA_criteriaValues XMCDA-2_2_3_xsd_Element_xmcda_XMCDA.tmp#XMCDA_criteriaComparisons XMCDA-2_2_3_xsd_Element_xmcda_XMCDA.tmp#XMCDA_criteriaLinearConstraints XMCDA-2_2_3_xsd_Element_xmcda_XMCDA.tmp#XMCDA_criteriaMatrix XMCDA-2_2_3_xsd_Element_xmcda_XMCDA.tmp#XMCDA_attributeValue XMCDA-2_2_3_xsd_Element_xmcda_XMCDA.tmp#XMCDA_attributesValues XMCDA-2_2_3_xsd_Element_xmcda_XMCDA.tmp#XMCDA_attributesComparisons XMCDA-2_2_3_xsd_Element_xmcda_XMCDA.tmp#XMCDA_attributesLinearConstraints XMCDA-2_2_3_xsd_Element_xmcda_XMCDA.tmp#XMCDA_attributesMatrix XMCDA-2_2_3_xsd_Element_xmcda_XMCDA.tmp#XMCDA_alternativeValue XMCDA-2_2_3_xsd_Element_xmcda_XMCDA.tmp#XMCDA_alternativesValues XMCDA-2_2_3_xsd_Element_xmcda_XMCDA.tmp#XMCDA_alternativesComparisons XMCDA-2_2_3_xsd_Element_xmcda_XMCDA.tmp#XMCDA_alternativesLinearConstraints XMCDA-2_2_3_xsd_Element_xmcda_XMCDA.tmp#XMCDA_alternativesMatrix XMCDA-2_2_3_xsd_Element_xmcda_XMCDA.tmp#XMCDA_alternativesCriteriaValues XMCDA-2_2_3_xsd_Element_xmcda_XMCDA.tmp#XMCDA_categoriesProfiles XMCDA-2_2_3_xsd_Element_xmcda_XMCDA.tmp#XMCDA_categoriesContents XMCDA-2_2_3_xsd_Element_xmcda_XMCDA.tmp#XMCDA_alternativesAffectations XMCDA-2_2_3_xsd_Element_xmcda_XMCDA.tmp#XMCDA_categoryValue XMCDA-2_2_3_xsd_Element_xmcda_XMCDA.tmp#XMCDA_categoriesValues XMCDA-2_2_3_xsd_Element_xmcda_XMCDA.tmp#XMCDA_categoriesComparisons XMCDA-2_2_3_xsd_Element_xmcda_XMCDA.tmp#XMCDA_categoriesLinearConstraints XMCDA-2_2_3_xsd_Element_xmcda_XMCDA.tmp#XMCDA_categoriesMatrix
Properties
content complex
Model
Children alternativeValue, alternatives, alternativesAffectations, alternativesComparisons, alternativesCriteriaValues, alternativesLinearConstraints, alternativesMatrix, alternativesSet, alternativesSets, alternativesValues, attributeValue, attributes, attributesComparisons, attributesLinearConstraints, attributesMatrix, attributesSet, attributesSets, attributesValues, categories, categoriesComparisons, categoriesContents, categoriesLinearConstraints, categoriesMatrix, categoriesProfiles, categoriesSet, categoriesSets, categoriesValues, categoryValue, criteria, criteriaComparisons, criteriaLinearConstraints, criteriaMatrix, criteriaSet, criteriaSets, criteriaValues, criterionValue, hierarchy, methodMessages, methodParameters, performanceTable, projectReference
Instance

<xmcda:XMCDA creationDate="" instanceAuthor="" instanceID="" lastModificationDate="" previousInstanceID="" xmlns:xmcda="http://www.decision-deck.org/2019/XMCDA-2.2.3">
  <projectReference id="" mcdaConcept="" name="">{0,unbounded}</projectReference>
  <methodMessages id="" mcdaConcept="" name="">{0,unbounded}</methodMessages>
  <methodParameters id="" mcdaConcept="" name="">{0,unbounded}</methodParameters>

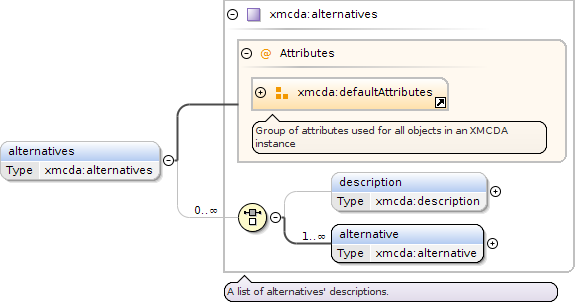

  <alternatives id="" mcdaConcept="" name="">{0,unbounded}</alternatives>

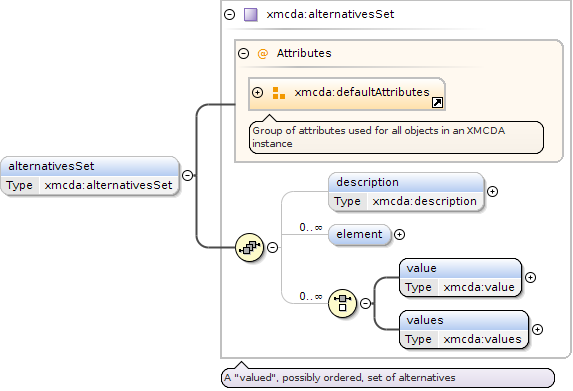

  <alternativesSet id="" mcdaConcept="" name="">{0,unbounded}</alternativesSet>

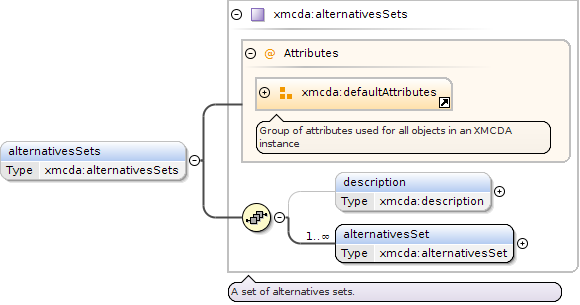

  <alternativesSets id="" mcdaConcept="" name="">{0,unbounded}</alternativesSets>
  <attributes id="" mcdaConcept="" name="">{0,unbounded}</attributes>
  <attributesSet id="" mcdaConcept="" name="">{0,unbounded}</attributesSet>
  <attributesSets id="" mcdaConcept="" name="">{0,unbounded}</attributesSets>

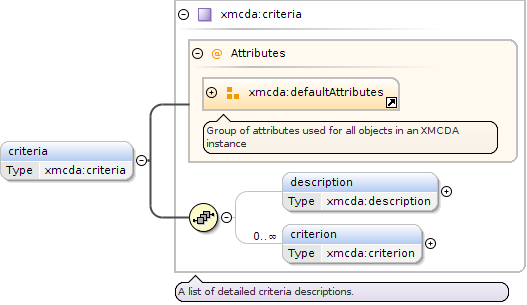

  <criteria id="" mcdaConcept="" name="">{0,unbounded}</criteria>
  <criteriaSet id="" mcdaConcept="" name="">{0,unbounded}</criteriaSet>

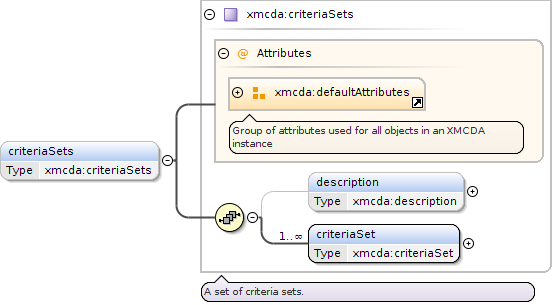

  <criteriaSets id="" mcdaConcept="" name="">{0,unbounded}</criteriaSets>

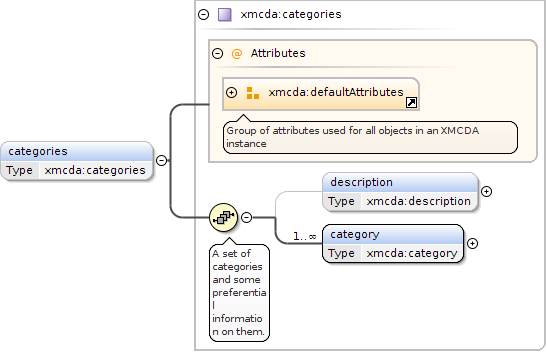

  <categories id="" mcdaConcept="" name="">{0,unbounded}</categories>

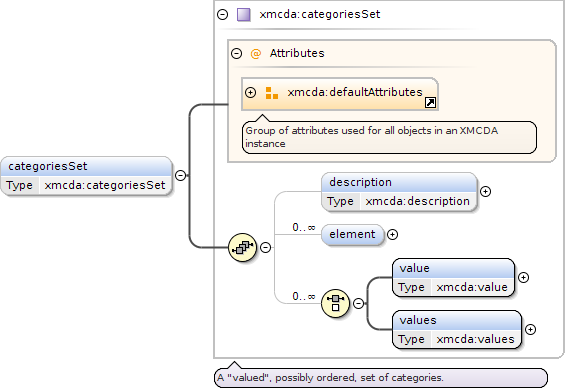

  <categoriesSet id="" mcdaConcept="" name="">{0,unbounded}</categoriesSet>

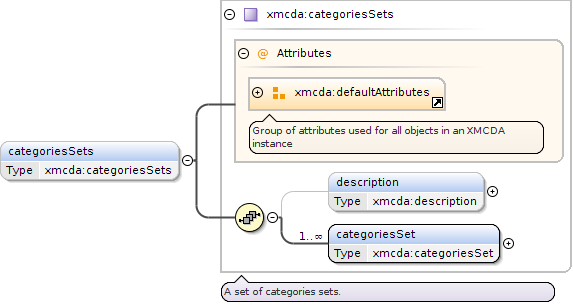

  <categoriesSets id="" mcdaConcept="" name="">{0,unbounded}</categoriesSets>
  <performanceTable id="" mcdaConcept="" name="">{0,unbounded}</performanceTable>

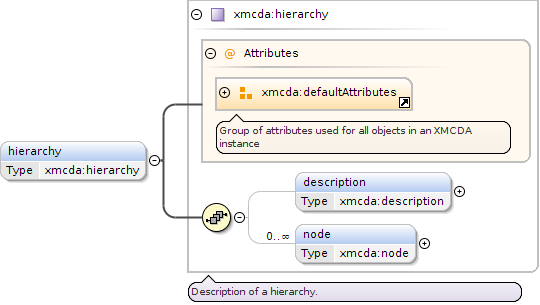

  <hierarchy id="" mcdaConcept="" name="">{0,unbounded}</hierarchy>
  <criterionValue id="" mcdaConcept="" name="">{0,unbounded}</criterionValue>
  <criteriaValues id="" mcdaConcept="" name="">{0,unbounded}</criteriaValues>

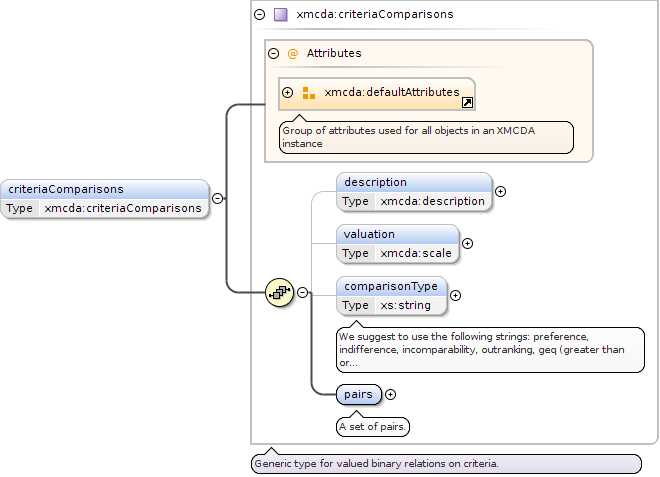

  <criteriaComparisons id="" mcdaConcept="" name="">{0,unbounded}</criteriaComparisons>

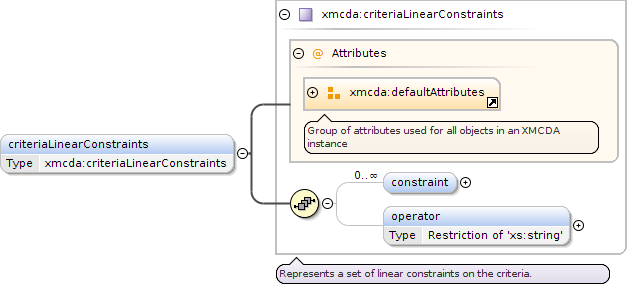

  <criteriaLinearConstraints id="" mcdaConcept="" name="">{0,unbounded}</criteriaLinearConstraints>

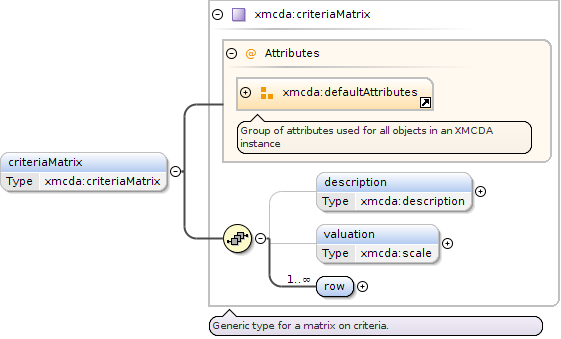

  <criteriaMatrix id="" mcdaConcept="" name="">{0,unbounded}</criteriaMatrix>

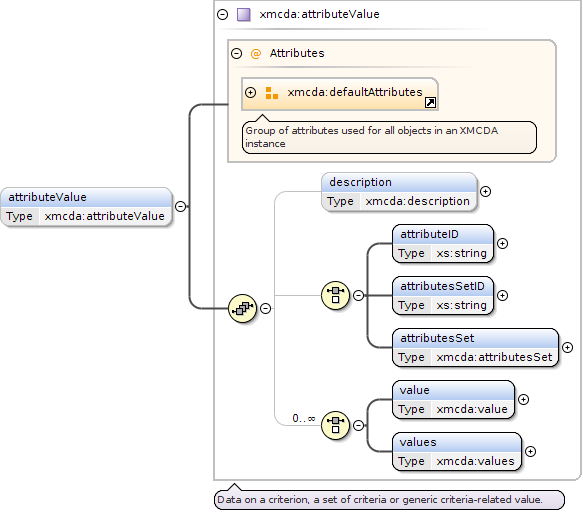

  <attributeValue id="" mcdaConcept="" name="">{0,unbounded}</attributeValue>
  <attributesValues id="" mcdaConcept="" name="">{0,unbounded}</attributesValues>

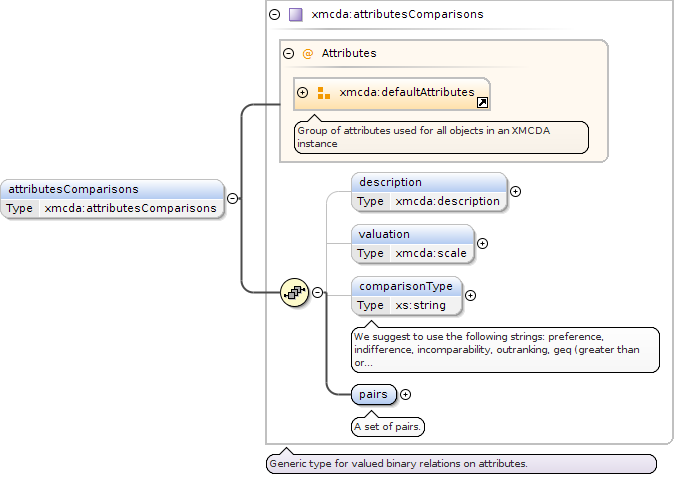

  <attributesComparisons id="" mcdaConcept="" name="">{0,unbounded}</attributesComparisons>
  <attributesLinearConstraints id="" mcdaConcept="" name="">{0,unbounded}</attributesLinearConstraints>
  <attributesMatrix id="" mcdaConcept="" name="">{0,unbounded}</attributesMatrix>

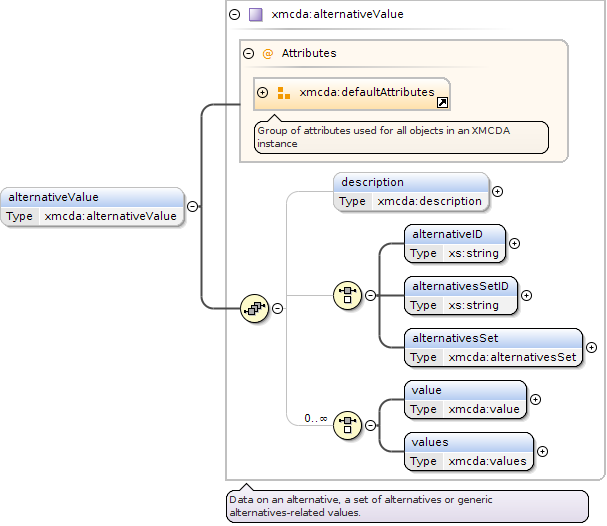

  <alternativeValue id="" mcdaConcept="" name="">{0,unbounded}</alternativeValue>
  <alternativesValues id="" mcdaConcept="" name="">{0,unbounded}</alternativesValues>
  <alternativesComparisons id="" mcdaConcept="" name="">{0,unbounded}</alternativesComparisons>

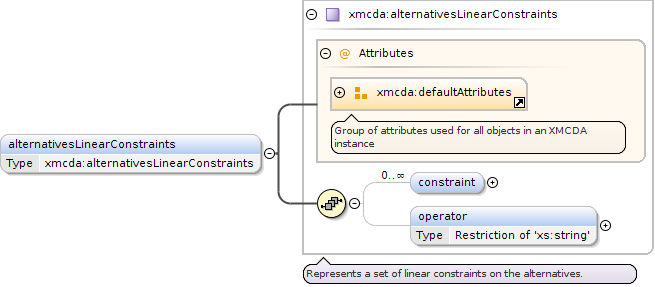

  <alternativesLinearConstraints id="" mcdaConcept="" name="">{0,unbounded}</alternativesLinearConstraints>
  <alternativesMatrix id="" mcdaConcept="" name="">{0,unbounded}</alternativesMatrix>

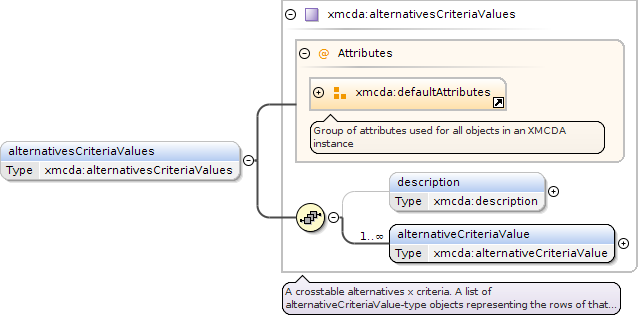

  <alternativesCriteriaValues id="" mcdaConcept="" name="">{0,unbounded}</alternativesCriteriaValues>

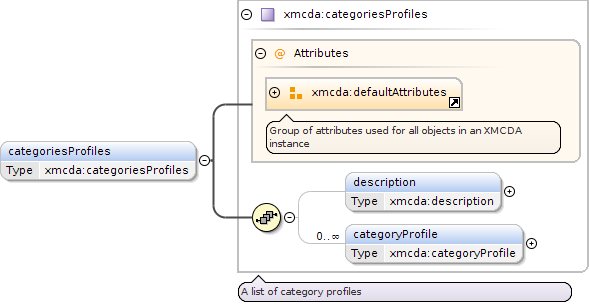

  <categoriesProfiles id="" mcdaConcept="" name="">{0,unbounded}</categoriesProfiles>
  <categoriesContents id="" mcdaConcept="" name="">{0,unbounded}</categoriesContents>

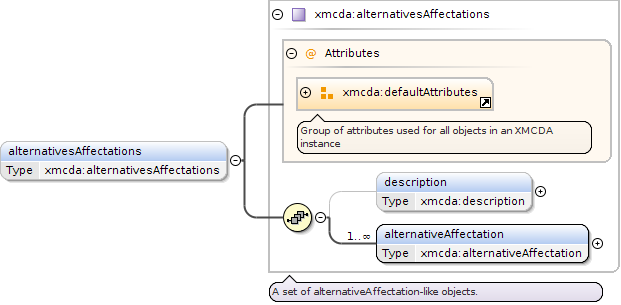

  <alternativesAffectations id="" mcdaConcept="" name="">{0,unbounded}</alternativesAffectations>
  <categoryValue id="" mcdaConcept="" name="">{0,unbounded}</categoryValue>

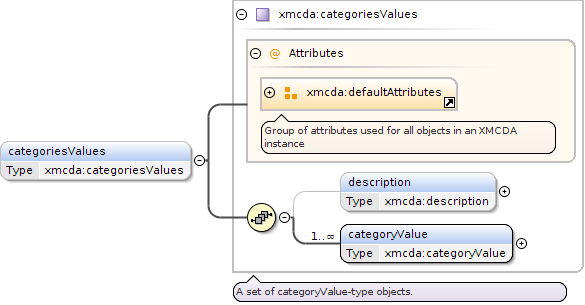

  <categoriesValues id="" mcdaConcept="" name="">{0,unbounded}</categoriesValues>

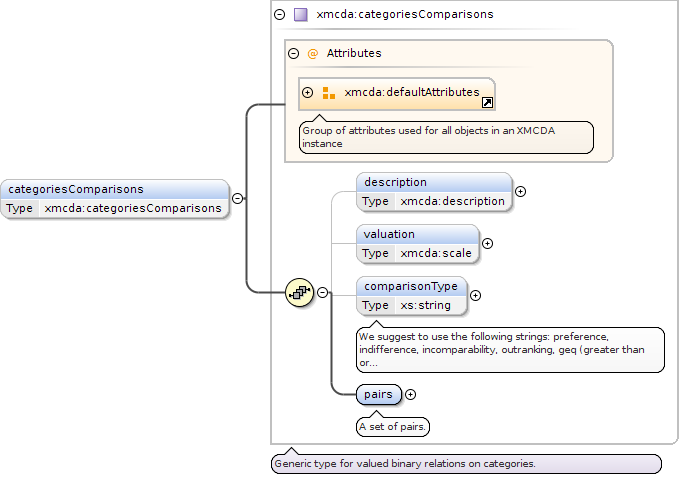

  <categoriesComparisons id="" mcdaConcept="" name="">{0,unbounded}</categoriesComparisons>
  <categoriesLinearConstraints id="" mcdaConcept="" name="">{0,unbounded}</categoriesLinearConstraints>

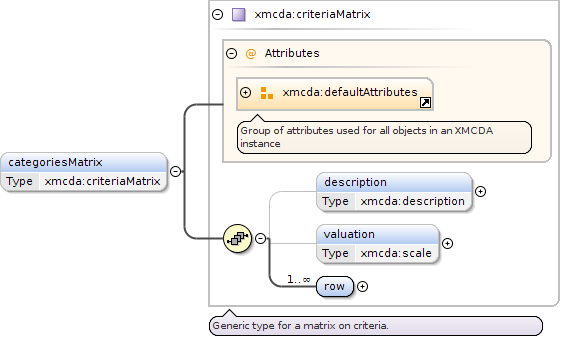

  <categoriesMatrix id="" mcdaConcept="" name="">{0,unbounded}</categoriesMatrix>
</xmcda:XMCDA>
Attributes
QName Type Use
creationDate xs:dateTime optional
instanceAuthor xs:string optional
instanceID xs:string optional
lastModificationDate xs:dateTime optional
previousInstanceID xs:string optional
Source

<xs:element name="XMCDA">
  <xs:annotation>
    <xs:documentation>Root of the XMCDA element tree.</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:choice minOccurs="1" maxOccurs="unbounded">
      <xs:element name="projectReference" type="xmcda:projectReference" minOccurs="0" maxOccurs="unbounded"/>
      <xs:element name="methodMessages" type="xmcda:methodMessages" minOccurs="0" maxOccurs="unbounded"/>
      <xs:element name="methodParameters" type="xmcda:methodParameters" minOccurs="0" maxOccurs="unbounded"/>
      <!-- description of the alternatives and the sets of alternatives -->
      <xs:element name="alternatives" type="xmcda:alternatives" minOccurs="0" maxOccurs="unbounded"/>
      <xs:element name="alternativesSet" type="xmcda:alternativesSet" minOccurs="0" maxOccurs="unbounded"/>
      <xs:element name="alternativesSets" type="xmcda:alternativesSets" minOccurs="0" maxOccurs="unbounded"/>
      <!-- description of the attributes, the criteria, the sets of attributes and the sets of criteria -->

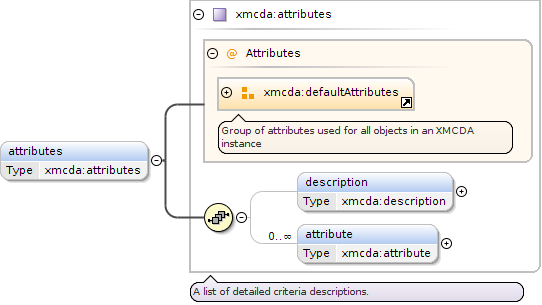

      <xs:element name="attributes" type="xmcda:attributes" minOccurs="0" maxOccurs="unbounded"/>
      <xs:element name="attributesSet" type="xmcda:attributesSet" minOccurs="0" maxOccurs="unbounded"/>

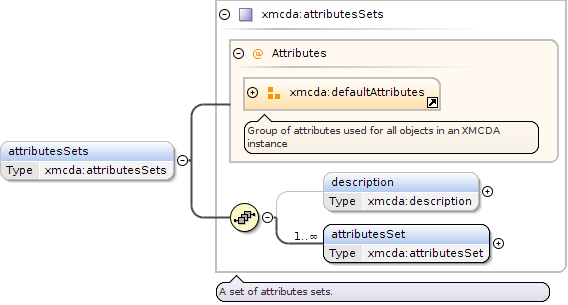

      <xs:element name="attributesSets" type="xmcda:attributesSets" minOccurs="0" maxOccurs="unbounded"/>
      <xs:element name="criteria" type="xmcda:criteria" minOccurs="0" maxOccurs="unbounded"/>
      <xs:element name="criteriaSet" type="xmcda:criteriaSet" minOccurs="0" maxOccurs="unbounded"/>
      <xs:element name="criteriaSets" type="xmcda:criteriaSets" minOccurs="0" maxOccurs="unbounded"/>
      <!-- description of the categories and the sets of categories -->
      <xs:element name="categories" type="xmcda:categories" minOccurs="0" maxOccurs="unbounded"/>
      <xs:element name="categoriesSet" type="xmcda:categoriesSet" minOccurs="0" maxOccurs="unbounded"/>
      <xs:element name="categoriesSets" type="xmcda:categoriesSets" minOccurs="0" maxOccurs="unbounded"/>
      <!-- the performance table -->

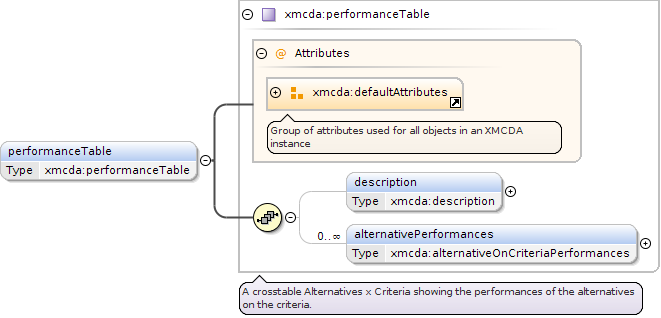

      <xs:element name="performanceTable" type="xmcda:performanceTable" minOccurs="0" maxOccurs="unbounded"/>
      <!-- a hierarchy on criteria, alternatives, attributes, categories -->
      <xs:element name="hierarchy" type="xmcda:hierarchy" minOccurs="0" maxOccurs="unbounded"/>
      <!-- data linked to criteria -->

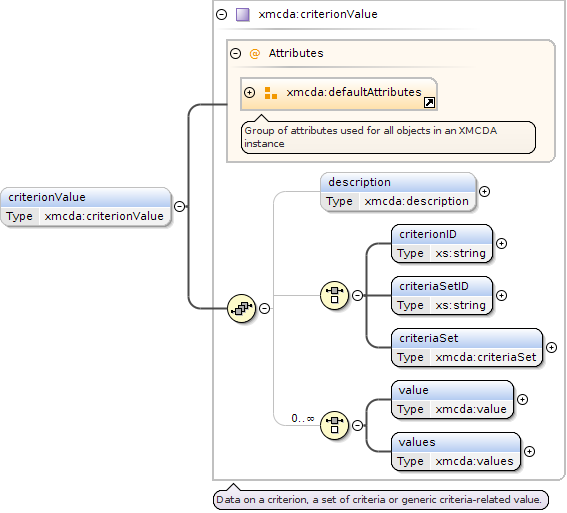

      <xs:element name="criterionValue" minOccurs="0" maxOccurs="unbounded" type="xmcda:criterionValue"/>
      <xs:element name="criteriaValues" minOccurs="0" maxOccurs="unbounded" type="xmcda:criteriaValues"/>
      <xs:element name="criteriaComparisons" minOccurs="0" maxOccurs="unbounded" type="xmcda:criteriaComparisons"/>
      <xs:element name="criteriaLinearConstraints" minOccurs="0" maxOccurs="unbounded" type="xmcda:criteriaLinearConstraints"/>
      <xs:element name="criteriaMatrix" minOccurs="0" maxOccurs="unbounded" type="xmcda:criteriaMatrix"/>
      <!-- data linked to attributes -->
      <xs:element name="attributeValue" minOccurs="0" maxOccurs="unbounded" type="xmcda:attributeValue"/>
      <xs:element name="attributesValues" minOccurs="0" maxOccurs="unbounded" type="xmcda:attributesValues"/>
      <xs:element name="attributesComparisons" minOccurs="0" maxOccurs="unbounded" type="xmcda:attributesComparisons"/>
      <xs:element name="attributesLinearConstraints" minOccurs="0" maxOccurs="unbounded" type="xmcda:attributesLinearConstraints"/>

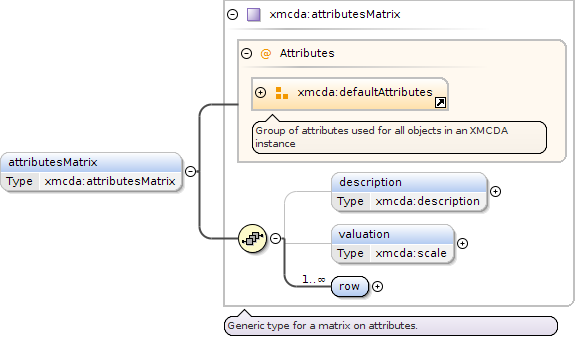

      <xs:element name="attributesMatrix" minOccurs="0" maxOccurs="unbounded" type="xmcda:attributesMatrix"/>
      <!-- data linked to alternatives -->
      <xs:element name="alternativeValue" minOccurs="0" maxOccurs="unbounded" type="xmcda:alternativeValue"/>

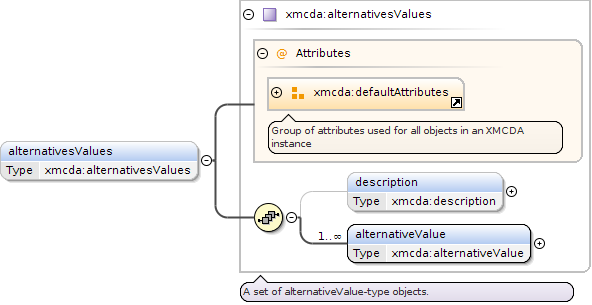

      <xs:element name="alternativesValues" minOccurs="0" maxOccurs="unbounded" type="xmcda:alternativesValues"/>

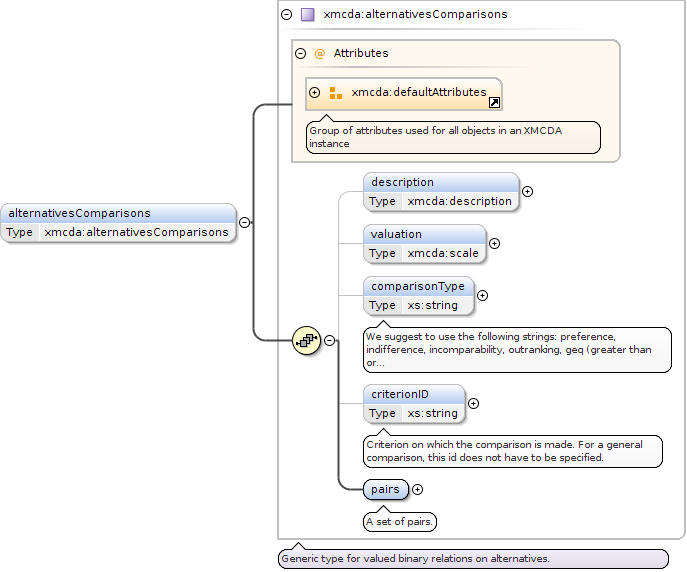

      <xs:element name="alternativesComparisons" minOccurs="0" maxOccurs="unbounded" type="xmcda:alternativesComparisons"/>
      <xs:element name="alternativesLinearConstraints" minOccurs="0" maxOccurs="unbounded" type="xmcda:alternativesLinearConstraints"/>

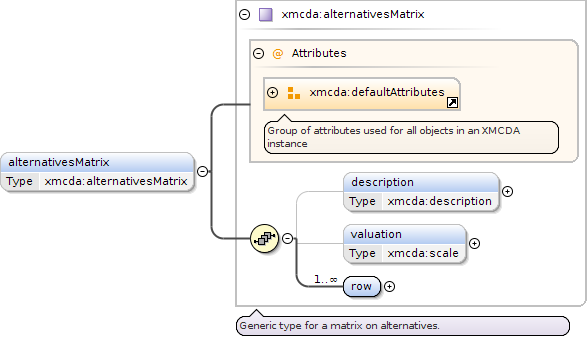

      <xs:element name="alternativesMatrix" minOccurs="0" maxOccurs="unbounded" type="xmcda:alternativesMatrix"/>
      <!-- data linked to allternatives and criteria -->
      <xs:element name="alternativesCriteriaValues" minOccurs="0" maxOccurs="unbounded" type="xmcda:alternativesCriteriaValues"/>
      <!-- data linked to categories -->
      <xs:element name="categoriesProfiles" minOccurs="0" maxOccurs="unbounded" type="xmcda:categoriesProfiles"/>

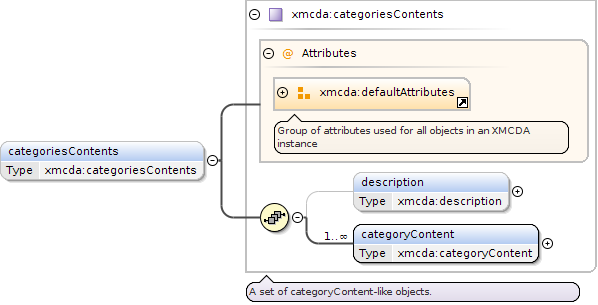

      <xs:element name="categoriesContents" minOccurs="0" maxOccurs="unbounded" type="xmcda:categoriesContents"/>
      <xs:element name="alternativesAffectations" minOccurs="0" maxOccurs="unbounded" type="xmcda:alternativesAffectations"/>

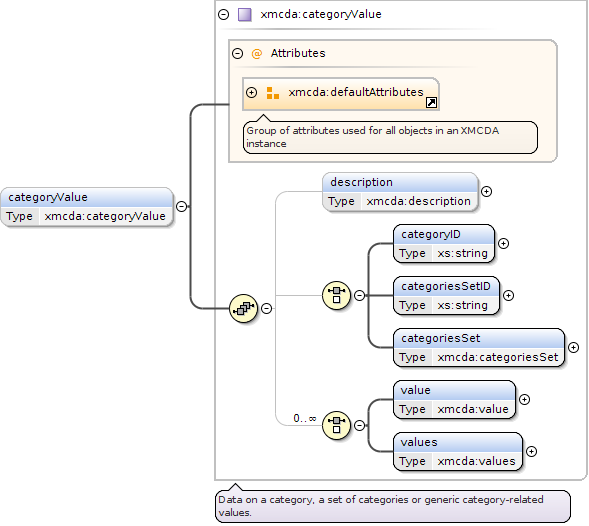

      <xs:element name="categoryValue" minOccurs="0" maxOccurs="unbounded" type="xmcda:categoryValue"/>
      <xs:element name="categoriesValues" minOccurs="0" maxOccurs="unbounded" type="xmcda:categoriesValues"/>
      <xs:element name="categoriesComparisons" minOccurs="0" maxOccurs="unbounded" type="xmcda:categoriesComparisons"/>
      <xs:element name="categoriesLinearConstraints" minOccurs="0" maxOccurs="unbounded" type="xmcda:categoriesLinearConstraints"/>
      <xs:element name="categoriesMatrix" minOccurs="0" maxOccurs="unbounded" type="xmcda:criteriaMatrix"/>
    </xs:choice>
    <xs:attributeGroup ref="xmcda:instanceDescription"/>
  </xs:complexType>
  <!-- reference integrity constraints -->
  <!-- <xs:key name="categoriesSetKey">
			<xs:selector xpath=".//categoriesSet"/>
			<xs:field xpath="@id"/>
		</xs:key>

		<xs:keyref name="categoriesSetRef" refer="xmcda:categoriesSetKey">
			<xs:selector xpath=".//categoriesSetID"/>
			<xs:field xpath="."/>
		</xs:keyref> -->
  <!-- <xs:key name="alternativesSetKey">
			<xs:selector xpath=".//alternativesSet"/>
			<xs:field xpath="@id"/>
		</xs:key>

		<xs:keyref name="alternativesSetRef" refer="xmcda:alternativesSetKey">
			<xs:selector xpath=".//alternativesSetID"/>
			<xs:field xpath="."/>
		</xs:keyref> -->
  <!--  <xs:key name="criteriaSetKey">
			<xs:selector xpath=".//criteriaSet"/>
			<xs:field xpath="@id"/>
		</xs:key>

		<xs:keyref name="criteriaSetRef" refer="xmcda:criteriaSetKey">
			<xs:selector xpath=".//criteriaSetID"/>
			<xs:field xpath="."/>
		</xs:keyref> -->
  <!-- <xs:key name="alternativeKey">
			<xs:selector xpath=".//alternative"/>
			<xs:field xpath="@id"/>
		</xs:key>

		<xs:keyref name="alternativeRef" refer="xmcda:alternativeKey">
			<xs:selector xpath=".//alternativeID"/>
			<xs:field xpath="."/>
		</xs:keyref>

		<xs:key name="attributeKey">
			<xs:selector xpath=".//attribute"/>
			<xs:field xpath="@id"/>
		</xs:key>

		<xs:keyref name="attributeRef" refer="xmcda:attributeKey">
			<xs:selector xpath=".//attributeID"/>
			<xs:field xpath="."/>
		</xs:keyref>

		<xs:key name="criterionKey">
			<xs:selector xpath=".//criterion"/>
			<xs:field xpath="@id"/>
		</xs:key>

		<xs:keyref name="criterionRef" refer="xmcda:criterionKey">
			<xs:selector xpath=".//criterionID"/>
			<xs:field xpath="."/>
		</xs:keyref>

		<xs:key name="categoryKey">
			<xs:selector xpath=".//category"/>
			<xs:field xpath="@id"/>
		</xs:key>

		<xs:keyref name="categoryRef" refer="xmcda:categoryKey">
			<xs:selector xpath=".//categoryID"/>
			<xs:field xpath="."/>
		</xs:keyref> -->
</xs:element>
Element xmcda:XMCDA / projectReference
Namespace No namespace
Diagram
Diagram XMCDA-2_2_3_xsd_Complex_Type_xmcda_description.tmp#description_title XMCDA-2_2_3_xsd_Complex_Type_xmcda_description.tmp#description_subTitle XMCDA-2_2_3_xsd_Complex_Type_xmcda_description.tmp#description_subSubTitle XMCDA-2_2_3_xsd_Complex_Type_xmcda_description.tmp#description_user XMCDA-2_2_3_xsd_Complex_Type_xmcda_description.tmp#description_author XMCDA-2_2_3_xsd_Complex_Type_xmcda_description.tmp#description_version XMCDA-2_2_3_xsd_Complex_Type_xmcda_description.tmp#description_creationDate XMCDA-2_2_3_xsd_Complex_Type_xmcda_description.tmp#description_lastModificationDate XMCDA-2_2_3_xsd_Complex_Type_xmcda_description.tmp#description_shortName XMCDA-2_2_3_xsd_Complex_Type_xmcda_description.tmp#description_comment XMCDA-2_2_3_xsd_Complex_Type_xmcda_description.tmp#description_abstract XMCDA-2_2_3_xsd_Complex_Type_xmcda_description.tmp#description_keywords XMCDA-2_2_3_xsd_Complex_Type_xmcda_description.tmp#description_bibliography XMCDA-2_2_3_xsd_Complex_Type_xmcda_description.tmp#description_stakeholders XMCDA-2_2_3_xsd_Complex_Type_xmcda_description.tmp#description XMCDA-2_2_3_xsd_Attribute_Group_xmcda_defaultAttributes.tmp#defaultAttributes XMCDA-2_2_3_xsd_Complex_Type_xmcda_projectReference.tmp#projectReference
Type xmcda:projectReference
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children abstract, author, bibliography, comment, creationDate, keywords, lastModificationDate, shortName, stakeholders, subSubTitle, subTitle, title, user, version
Instance

<projectReference id="" mcdaConcept="" name="">
  <title>{0,1}</title>
  <subTitle>{0,1}</subTitle>
  <subSubTitle>{0,1}</subSubTitle>
  <user>{0,1}</user>
  <author>{0,unbounded}</author>
  <version>{0,1}</version>
  <creationDate>{0,1}</creationDate>
  <lastModificationDate>{0,1}</lastModificationDate>
  <shortName>{0,1}</shortName>
  <comment>{0,1}</comment>
  <abstract>{0,1}</abstract>
  <keywords>{0,1}</keywords>
  <bibliography id="" mcdaConcept="" name="">{0,1}</bibliography>
  <stakeholders>{0,1}</stakeholders>
</projectReference>
Attributes
QName Type Use
id xs:string optional
mcdaConcept xs:string optional
name xs:string optional
Source

<xs:element name="projectReference" type="xmcda:projectReference" minOccurs="0" maxOccurs="unbounded"/>

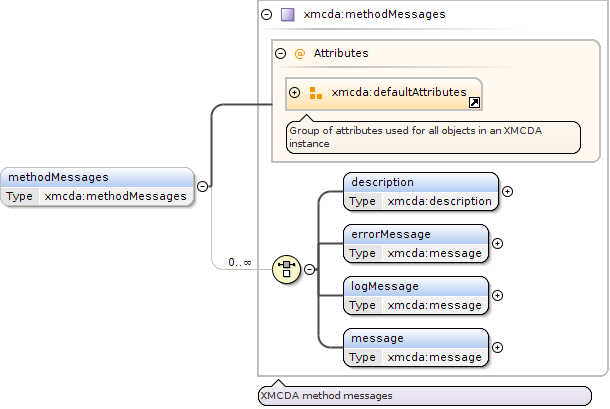

Element xmcda:XMCDA / methodMessages
Namespace No namespace
Diagram
Diagram XMCDA-2_2_3_xsd_Attribute_Group_xmcda_defaultAttributes.tmp#defaultAttributes XMCDA-2_2_3_xsd_Complex_Type_xmcda_methodMessages.tmp#methodMessages_description XMCDA-2_2_3_xsd_Complex_Type_xmcda_methodMessages.tmp#methodMessages_errorMessage XMCDA-2_2_3_xsd_Complex_Type_xmcda_methodMessages.tmp#methodMessages_logMessage XMCDA-2_2_3_xsd_Complex_Type_xmcda_methodMessages.tmp#methodMessages_message XMCDA-2_2_3_xsd_Complex_Type_xmcda_methodMessages.tmp#methodMessages
Type xmcda:methodMessages
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children description, errorMessage, logMessage, message
Instance

<methodMessages id="" mcdaConcept="" name="">
  <description>{1,1}</description>
  <errorMessage id="" mcdaConcept="" name="">{1,1}</errorMessage>
  <logMessage id="" mcdaConcept="" name="">{1,1}</logMessage>
  <message id="" mcdaConcept="" name="">{1,1}</message>
</methodMessages>
Attributes
QName Type Use
id xs:string optional
mcdaConcept xs:string optional
name xs:string optional
Source

<xs:element name="methodMessages" type="xmcda:methodMessages" minOccurs="0" maxOccurs="unbounded"/>

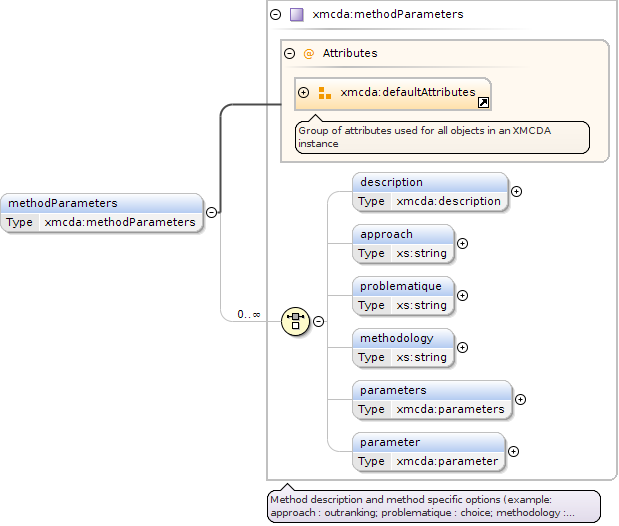

Element xmcda:XMCDA / methodParameters
Namespace No namespace
Diagram
Diagram XMCDA-2_2_3_xsd_Attribute_Group_xmcda_defaultAttributes.tmp#defaultAttributes XMCDA-2_2_3_xsd_Complex_Type_xmcda_methodParameters.tmp#methodParameters_description XMCDA-2_2_3_xsd_Complex_Type_xmcda_methodParameters.tmp#methodParameters_approach XMCDA-2_2_3_xsd_Complex_Type_xmcda_methodParameters.tmp#methodParameters_problematique XMCDA-2_2_3_xsd_Complex_Type_xmcda_methodParameters.tmp#methodParameters_methodology XMCDA-2_2_3_xsd_Complex_Type_xmcda_methodParameters.tmp#methodParameters_parameters XMCDA-2_2_3_xsd_Complex_Type_xmcda_methodParameters.tmp#methodParameters_parameter XMCDA-2_2_3_xsd_Complex_Type_xmcda_methodParameters.tmp#methodParameters
Type xmcda:methodParameters
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children approach, description, methodology, parameter, parameters, problematique
Instance

<methodParameters id="" mcdaConcept="" name="">
  <description>{0,1}</description>
  <approach>{0,1}</approach>
  <problematique>{0,1}</problematique>
  <methodology>{0,1}</methodology>
  <parameters id="" mcdaConcept="" name="">{0,1}</parameters>
  <parameter id="" mcdaConcept="" name="">{0,1}</parameter>
</methodParameters>
Attributes
QName Type Use
id xs:string optional
mcdaConcept xs:string optional
name xs:string optional
Source

<xs:element name="methodParameters" type="xmcda:methodParameters" minOccurs="0" maxOccurs="unbounded"/>
Element xmcda:XMCDA / alternatives
Namespace No namespace
Diagram
Diagram XMCDA-2_2_3_xsd_Attribute_Group_xmcda_defaultAttributes.tmp#defaultAttributes XMCDA-2_2_3_xsd_Complex_Type_xmcda_alternatives.tmp#alternatives_description XMCDA-2_2_3_xsd_Complex_Type_xmcda_alternatives.tmp#alternatives_alternative XMCDA-2_2_3_xsd_Complex_Type_xmcda_alternatives.tmp#alternatives
Type xmcda:alternatives
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children alternative, description
Instance

<alternatives id="" mcdaConcept="" name="">
  <description>{0,1}</description>
  <alternative id="" mcdaConcept="" name="">{1,unbounded}</alternative>
</alternatives>
Attributes
QName Type Use
id xs:string optional
mcdaConcept xs:string optional
name xs:string optional
Source

<xs:element name="alternatives" type="xmcda:alternatives" minOccurs="0" maxOccurs="unbounded"/>
Element xmcda:XMCDA / alternativesSet
Namespace No namespace
Diagram
Diagram XMCDA-2_2_3_xsd_Attribute_Group_xmcda_defaultAttributes.tmp#defaultAttributes XMCDA-2_2_3_xsd_Complex_Type_xmcda_alternativesSet.tmp#alternativesSet_description XMCDA-2_2_3_xsd_Complex_Type_xmcda_alternativesSet.tmp#alternativesSet_element XMCDA-2_2_3_xsd_Complex_Type_xmcda_alternativesSet.tmp#alternativesSet_value XMCDA-2_2_3_xsd_Complex_Type_xmcda_alternativesSet.tmp#alternativesSet_values XMCDA-2_2_3_xsd_Complex_Type_xmcda_alternativesSet.tmp#alternativesSet
Type xmcda:alternativesSet
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children description, element, value, values
Instance

<alternativesSet id="" mcdaConcept="" name="">
  <description>{0,1}</description>
  <element>{0,unbounded}</element>
  <value id="" mcdaConcept="" name="">{1,1}</value>
  <values id="" mcdaConcept="" name="">{1,1}</values>
</alternativesSet>
Attributes
QName Type Use
id xs:string optional
mcdaConcept xs:string optional
name xs:string optional
Source

<xs:element name="alternativesSet" type="xmcda:alternativesSet" minOccurs="0" maxOccurs="unbounded"/>
Element xmcda:XMCDA / alternativesSets
Namespace No namespace
Diagram
Diagram XMCDA-2_2_3_xsd_Attribute_Group_xmcda_defaultAttributes.tmp#defaultAttributes XMCDA-2_2_3_xsd_Complex_Type_xmcda_alternativesSets.tmp#alternativesSets_description XMCDA-2_2_3_xsd_Complex_Type_xmcda_alternativesSets.tmp#alternativesSets_alternativesSet XMCDA-2_2_3_xsd_Complex_Type_xmcda_alternativesSets.tmp#alternativesSets
Type xmcda:alternativesSets
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children alternativesSet, description
Instance

<alternativesSets id="" mcdaConcept="" name="">
  <description>{0,1}</description>
  <alternativesSet id="" mcdaConcept="" name="">{1,unbounded}</alternativesSet>
</alternativesSets>
Attributes
QName Type Use
id xs:string optional
mcdaConcept xs:string optional
name xs:string optional
Source

<xs:element name="alternativesSets" type="xmcda:alternativesSets" minOccurs="0" maxOccurs="unbounded"/>
Element xmcda:XMCDA / attributes
Namespace No namespace
Diagram
Diagram XMCDA-2_2_3_xsd_Attribute_Group_xmcda_defaultAttributes.tmp#defaultAttributes XMCDA-2_2_3_xsd_Complex_Type_xmcda_attributes.tmp#attributes_description XMCDA-2_2_3_xsd_Complex_Type_xmcda_attributes.tmp#attributes_attribute XMCDA-2_2_3_xsd_Complex_Type_xmcda_attributes.tmp#attributes
Type xmcda:attributes
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children attribute, description
Instance

<attributes id="" mcdaConcept="" name="">
  <description>{0,1}</description>
  <attribute id="" mcdaConcept="" name="">{0,unbounded}</attribute>
</attributes>
Attributes
QName Type Use
id xs:string optional
mcdaConcept xs:string optional
name xs:string optional
Source

<xs:element name="attributes" type="xmcda:attributes" minOccurs="0" maxOccurs="unbounded"/>
Element xmcda:XMCDA / attributesSet
Namespace No namespace
Diagram
Diagram XMCDA-2_2_3_xsd_Attribute_Group_xmcda_defaultAttributes.tmp#defaultAttributes XMCDA-2_2_3_xsd_Complex_Type_xmcda_attributesSet.tmp#attributesSet_description XMCDA-2_2_3_xsd_Complex_Type_xmcda_attributesSet.tmp#attributesSet_element XMCDA-2_2_3_xsd_Complex_Type_xmcda_attributesSet.tmp#attributesSet_value XMCDA-2_2_3_xsd_Complex_Type_xmcda_attributesSet.tmp#attributesSet_values XMCDA-2_2_3_xsd_Complex_Type_xmcda_attributesSet.tmp#attributesSet
Type xmcda:attributesSet
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children description, element, value, values
Instance

<attributesSet id="" mcdaConcept="" name="">
  <description>{0,1}</description>
  <element>{0,unbounded}</element>
  <value id="" mcdaConcept="" name="">{1,1}</value>
  <values id="" mcdaConcept="" name="">{1,1}</values>
</attributesSet>
Attributes
QName Type Use
id xs:string optional
mcdaConcept xs:string optional
name xs:string optional
Source

<xs:element name="attributesSet" type="xmcda:attributesSet" minOccurs="0" maxOccurs="unbounded"/>
Element xmcda:XMCDA / attributesSets
Namespace No namespace
Diagram
Diagram XMCDA-2_2_3_xsd_Attribute_Group_xmcda_defaultAttributes.tmp#defaultAttributes XMCDA-2_2_3_xsd_Complex_Type_xmcda_attributesSets.tmp#attributesSets_description XMCDA-2_2_3_xsd_Complex_Type_xmcda_attributesSets.tmp#attributesSets_attributesSet XMCDA-2_2_3_xsd_Complex_Type_xmcda_attributesSets.tmp#attributesSets
Type xmcda:attributesSets
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children attributesSet, description
Instance

<attributesSets id="" mcdaConcept="" name="">
  <description>{0,1}</description>
  <attributesSet id="" mcdaConcept="" name="">{1,unbounded}</attributesSet>
</attributesSets>
Attributes
QName Type Use
id xs:string optional
mcdaConcept xs:string optional
name xs:string optional
Source

<xs:element name="attributesSets" type="xmcda:attributesSets" minOccurs="0" maxOccurs="unbounded"/>
Element xmcda:XMCDA / criteria
Namespace No namespace
Diagram
Diagram XMCDA-2_2_3_xsd_Attribute_Group_xmcda_defaultAttributes.tmp#defaultAttributes XMCDA-2_2_3_xsd_Complex_Type_xmcda_criteria.tmp#criteria_description XMCDA-2_2_3_xsd_Complex_Type_xmcda_criteria.tmp#criteria_criterion XMCDA-2_2_3_xsd_Complex_Type_xmcda_criteria.tmp#criteria
Type xmcda:criteria
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children criterion, description
Instance

<criteria id="" mcdaConcept="" name="">
  <description>{0,1}</description>
  <criterion id="" mcdaConcept="" name="">{0,unbounded}</criterion>
</criteria>
Attributes
QName Type Use
id xs:string optional
mcdaConcept xs:string optional
name xs:string optional
Source

<xs:element name="criteria" type="xmcda:criteria" minOccurs="0" maxOccurs="unbounded"/>
Element xmcda:XMCDA / criteriaSet
Namespace No namespace
Diagram
Diagram XMCDA-2_2_3_xsd_Attribute_Group_xmcda_defaultAttributes.tmp#defaultAttributes XMCDA-2_2_3_xsd_Complex_Type_xmcda_criteriaSet.tmp#criteriaSet_description XMCDA-2_2_3_xsd_Complex_Type_xmcda_criteriaSet.tmp#criteriaSet_element XMCDA-2_2_3_xsd_Complex_Type_xmcda_criteriaSet.tmp#criteriaSet_value XMCDA-2_2_3_xsd_Complex_Type_xmcda_criteriaSet.tmp#criteriaSet_values XMCDA-2_2_3_xsd_Complex_Type_xmcda_criteriaSet.tmp#criteriaSet
Type xmcda:criteriaSet
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children description, element, value, values
Instance

<criteriaSet id="" mcdaConcept="" name="">
  <description>{0,1}</description>
  <element>{0,unbounded}</element>
  <value id="" mcdaConcept="" name="">{1,1}</value>
  <values id="" mcdaConcept="" name="">{1,1}</values>
</criteriaSet>
Attributes
QName Type Use
id xs:string optional
mcdaConcept xs:string optional
name xs:string optional
Source

<xs:element name="criteriaSet" type="xmcda:criteriaSet" minOccurs="0" maxOccurs="unbounded"/>
Element xmcda:XMCDA / criteriaSets
Namespace No namespace
Diagram
Diagram XMCDA-2_2_3_xsd_Attribute_Group_xmcda_defaultAttributes.tmp#defaultAttributes XMCDA-2_2_3_xsd_Complex_Type_xmcda_criteriaSets.tmp#criteriaSets_description XMCDA-2_2_3_xsd_Complex_Type_xmcda_criteriaSets.tmp#criteriaSets_criteriaSet XMCDA-2_2_3_xsd_Complex_Type_xmcda_criteriaSets.tmp#criteriaSets
Type xmcda:criteriaSets
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children criteriaSet, description
Instance

<criteriaSets id="" mcdaConcept="" name="">
  <description>{0,1}</description>
  <criteriaSet id="" mcdaConcept="" name="">{1,unbounded}</criteriaSet>
</criteriaSets>
Attributes
QName Type Use
id xs:string optional
mcdaConcept xs:string optional
name xs:string optional
Source

<xs:element name="criteriaSets" type="xmcda:criteriaSets" minOccurs="0" maxOccurs="unbounded"/>
Element xmcda:XMCDA / categories
Namespace No namespace
Diagram
Diagram XMCDA-2_2_3_xsd_Attribute_Group_xmcda_defaultAttributes.tmp#defaultAttributes XMCDA-2_2_3_xsd_Complex_Type_xmcda_categories.tmp#categories_description XMCDA-2_2_3_xsd_Complex_Type_xmcda_categories.tmp#categories_category XMCDA-2_2_3_xsd_Complex_Type_xmcda_categories.tmp#categories
Type xmcda:categories
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children category, description
Instance

<categories id="" mcdaConcept="" name="">
  <description>{0,1}</description>
  <category id="" mcdaConcept="" name="">{1,unbounded}</category>
</categories>
Attributes
QName Type Use
id xs:string optional
mcdaConcept xs:string optional
name xs:string optional
Source

<xs:element name="categories" type="xmcda:categories" minOccurs="0" maxOccurs="unbounded"/>
Element xmcda:XMCDA / categoriesSet
Namespace No namespace
Diagram
Diagram XMCDA-2_2_3_xsd_Attribute_Group_xmcda_defaultAttributes.tmp#defaultAttributes XMCDA-2_2_3_xsd_Complex_Type_xmcda_categoriesSet.tmp#categoriesSet_description XMCDA-2_2_3_xsd_Complex_Type_xmcda_categoriesSet.tmp#categoriesSet_element XMCDA-2_2_3_xsd_Complex_Type_xmcda_categoriesSet.tmp#categoriesSet_value XMCDA-2_2_3_xsd_Complex_Type_xmcda_categoriesSet.tmp#categoriesSet_values XMCDA-2_2_3_xsd_Complex_Type_xmcda_categoriesSet.tmp#categoriesSet
Type xmcda:categoriesSet
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children description, element, value, values
Instance

<categoriesSet id="" mcdaConcept="" name="">
  <description>{0,1}</description>
  <element>{0,unbounded}</element>
  <value id="" mcdaConcept="" name="">{1,1}</value>
  <values id="" mcdaConcept="" name="">{1,1}</values>
</categoriesSet>
Attributes
QName Type Use
id xs:string optional
mcdaConcept xs:string optional
name xs:string optional
Source

<xs:element name="categoriesSet" type="xmcda:categoriesSet" minOccurs="0" maxOccurs="unbounded"/>
Element xmcda:XMCDA / categoriesSets
Namespace No namespace
Diagram
Diagram XMCDA-2_2_3_xsd_Attribute_Group_xmcda_defaultAttributes.tmp#defaultAttributes XMCDA-2_2_3_xsd_Complex_Type_xmcda_categoriesSets.tmp#categoriesSets_description XMCDA-2_2_3_xsd_Complex_Type_xmcda_categoriesSets.tmp#categoriesSets_categoriesSet XMCDA-2_2_3_xsd_Complex_Type_xmcda_categoriesSets.tmp#categoriesSets
Type xmcda:categoriesSets
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children categoriesSet, description
Instance

<categoriesSets id="" mcdaConcept="" name="">
  <description>{0,1}</description>
  <categoriesSet id="" mcdaConcept="" name="">{1,unbounded}</categoriesSet>
</categoriesSets>
Attributes
QName Type Use
id xs:string optional
mcdaConcept xs:string optional
name xs:string optional
Source

<xs:element name="categoriesSets" type="xmcda:categoriesSets" minOccurs="0" maxOccurs="unbounded"/>
Element xmcda:XMCDA / performanceTable
Namespace No namespace
Diagram
Diagram XMCDA-2_2_3_xsd_Attribute_Group_xmcda_defaultAttributes.tmp#defaultAttributes XMCDA-2_2_3_xsd_Complex_Type_xmcda_performanceTable.tmp#performanceTable_description XMCDA-2_2_3_xsd_Complex_Type_xmcda_performanceTable.tmp#performanceTable_alternativePerformances XMCDA-2_2_3_xsd_Complex_Type_xmcda_performanceTable.tmp#performanceTable
Type xmcda:performanceTable
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children alternativePerformances, description
Instance

<performanceTable id="" mcdaConcept="" name="">
  <description>{0,1}</description>
  <alternativePerformances id="" mcdaConcept="" name="">{0,unbounded}</alternativePerformances>
</performanceTable>
Attributes
QName Type Use
id xs:string optional
mcdaConcept xs:string optional
name xs:string optional
Source

<xs:element name="performanceTable" type="xmcda:performanceTable" minOccurs="0" maxOccurs="unbounded"/>
Element xmcda:XMCDA / hierarchy
Namespace No namespace
Diagram
Diagram XMCDA-2_2_3_xsd_Attribute_Group_xmcda_defaultAttributes.tmp#defaultAttributes XMCDA-2_2_3_xsd_Complex_Type_xmcda_hierarchy.tmp#hierarchy_description XMCDA-2_2_3_xsd_Complex_Type_xmcda_hierarchy.tmp#hierarchy_node XMCDA-2_2_3_xsd_Complex_Type_xmcda_hierarchy.tmp#hierarchy
Type xmcda:hierarchy
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children description, node
Instance

<hierarchy id="" mcdaConcept="" name="">
  <description>{0,1}</description>
  <node id="" mcdaConcept="" name="">{0,unbounded}</node>
</hierarchy>
Attributes
QName Type Use
id xs:string optional
mcdaConcept xs:string optional
name xs:string optional
Source

<xs:element name="hierarchy" type="xmcda:hierarchy" minOccurs="0" maxOccurs="unbounded"/>
Element xmcda:XMCDA / criterionValue
Namespace No namespace
Diagram
Diagram XMCDA-2_2_3_xsd_Attribute_Group_xmcda_defaultAttributes.tmp#defaultAttributes XMCDA-2_2_3_xsd_Complex_Type_xmcda_criterionValue.tmp#criterionValue_description XMCDA-2_2_3_xsd_Complex_Type_xmcda_criterionValue.tmp#criterionValue_criterionID XMCDA-2_2_3_xsd_Complex_Type_xmcda_criterionValue.tmp#criterionValue_criteriaSetID XMCDA-2_2_3_xsd_Complex_Type_xmcda_criterionValue.tmp#criterionValue_criteriaSet XMCDA-2_2_3_xsd_Complex_Type_xmcda_criterionValue.tmp#criterionValue_value XMCDA-2_2_3_xsd_Complex_Type_xmcda_criterionValue.tmp#criterionValue_values XMCDA-2_2_3_xsd_Complex_Type_xmcda_criterionValue.tmp#criterionValue
Type xmcda:criterionValue
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children criteriaSet, criteriaSetID, criterionID, description, value, values
Instance

<criterionValue id="" mcdaConcept="" name="">
  <description>{0,1}</description>
  <criterionID>{1,1}</criterionID>
  <criteriaSetID>{1,1}</criteriaSetID>
  <criteriaSet id="" mcdaConcept="" name="">{1,1}</criteriaSet>
  <value id="" mcdaConcept="" name="">{1,1}</value>
  <values id="" mcdaConcept="" name="">{1,1}</values>
</criterionValue>
Attributes
QName Type Use
id xs:string optional
mcdaConcept xs:string optional
name xs:string optional
Source

<xs:element name="criterionValue" minOccurs="0" maxOccurs="unbounded" type="xmcda:criterionValue"/>
Element xmcda:XMCDA / criteriaValues
Namespace No namespace
Diagram
Diagram XMCDA-2_2_3_xsd_Attribute_Group_xmcda_defaultAttributes.tmp#defaultAttributes XMCDA-2_2_3_xsd_Complex_Type_xmcda_criteriaValues.tmp#criteriaValues_description XMCDA-2_2_3_xsd_Complex_Type_xmcda_criteriaValues.tmp#criteriaValues_criterionValue XMCDA-2_2_3_xsd_Complex_Type_xmcda_criteriaValues.tmp#criteriaValues
Type xmcda:criteriaValues
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children criterionValue, description
Instance

<criteriaValues id="" mcdaConcept="" name="">
  <description>{0,1}</description>
  <criterionValue id="" mcdaConcept="" name="">{1,unbounded}</criterionValue>
</criteriaValues>
Attributes
QName Type Use
id xs:string optional
mcdaConcept xs:string optional
name xs:string optional
Source

<xs:element name="criteriaValues" minOccurs="0" maxOccurs="unbounded" type="xmcda:criteriaValues"/>
Element xmcda:XMCDA / criteriaComparisons
Namespace No namespace
Diagram
Diagram XMCDA-2_2_3_xsd_Attribute_Group_xmcda_defaultAttributes.tmp#defaultAttributes XMCDA-2_2_3_xsd_Complex_Type_xmcda_criteriaComparisons.tmp#criteriaComparisons_description XMCDA-2_2_3_xsd_Complex_Type_xmcda_criteriaComparisons.tmp#criteriaComparisons_valuation XMCDA-2_2_3_xsd_Complex_Type_xmcda_criteriaComparisons.tmp#criteriaComparisons_comparisonType XMCDA-2_2_3_xsd_Complex_Type_xmcda_criteriaComparisons.tmp#criteriaComparisons_pairs XMCDA-2_2_3_xsd_Complex_Type_xmcda_criteriaComparisons.tmp#criteriaComparisons
Type xmcda:criteriaComparisons
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children comparisonType, description, pairs, valuation
Instance

<criteriaComparisons id="" mcdaConcept="" name="">
  <description>{0,1}</description>
  <valuation id="" mcdaConcept="" name="">{0,1}</valuation>
  <comparisonType>{0,1}</comparisonType>
  <pairs>{1,1}</pairs>
</criteriaComparisons>
Attributes
QName Type Use
id xs:string optional
mcdaConcept xs:string optional
name xs:string optional
Source

<xs:element name="criteriaComparisons" minOccurs="0" maxOccurs="unbounded" type="xmcda:criteriaComparisons"/>
Element xmcda:XMCDA / criteriaLinearConstraints
Namespace No namespace
Diagram
Diagram XMCDA-2_2_3_xsd_Attribute_Group_xmcda_defaultAttributes.tmp#defaultAttributes XMCDA-2_2_3_xsd_Complex_Type_xmcda_criteriaLinearConstraints.tmp#criteriaLinearConstraints_constraint XMCDA-2_2_3_xsd_Complex_Type_xmcda_criteriaLinearConstraints.tmp#criteriaLinearConstraints_operator XMCDA-2_2_3_xsd_Complex_Type_xmcda_criteriaLinearConstraints.tmp#criteriaLinearConstraints
Type xmcda:criteriaLinearConstraints
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children constraint, operator
Instance

<criteriaLinearConstraints id="" mcdaConcept="" name="">
  <constraint id="" mcdaConcept="" name="">{0,unbounded}</constraint>
  <operator>{0,1}</operator>
</criteriaLinearConstraints>
Attributes
QName Type Use
id xs:string optional
mcdaConcept xs:string optional
name xs:string optional
Source

<xs:element name="criteriaLinearConstraints" minOccurs="0" maxOccurs="unbounded" type="xmcda:criteriaLinearConstraints"/>
Element xmcda:XMCDA / criteriaMatrix
Namespace No namespace
Diagram
Diagram XMCDA-2_2_3_xsd_Attribute_Group_xmcda_defaultAttributes.tmp#defaultAttributes XMCDA-2_2_3_xsd_Complex_Type_xmcda_criteriaMatrix.tmp#criteriaMatrix_description XMCDA-2_2_3_xsd_Complex_Type_xmcda_criteriaMatrix.tmp#criteriaMatrix_valuation XMCDA-2_2_3_xsd_Complex_Type_xmcda_criteriaMatrix.tmp#criteriaMatrix_row XMCDA-2_2_3_xsd_Complex_Type_xmcda_criteriaMatrix.tmp#criteriaMatrix
Type xmcda:criteriaMatrix
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children description, row, valuation
Instance

<criteriaMatrix id="" mcdaConcept="" name="">
  <description>{0,1}</description>
  <valuation id="" mcdaConcept="" name="">{0,1}</valuation>
  <row id="" mcdaConcept="" name="">{1,unbounded}</row>
</criteriaMatrix>
Attributes
QName Type Use
id xs:string optional
mcdaConcept xs:string optional
name xs:string optional
Source

<xs:element name="criteriaMatrix" minOccurs="0" maxOccurs="unbounded" type="xmcda:criteriaMatrix"/>
Element xmcda:XMCDA / attributeValue
Namespace No namespace
Diagram
Diagram XMCDA-2_2_3_xsd_Attribute_Group_xmcda_defaultAttributes.tmp#defaultAttributes XMCDA-2_2_3_xsd_Complex_Type_xmcda_attributeValue.tmp#attributeValue_description XMCDA-2_2_3_xsd_Complex_Type_xmcda_attributeValue.tmp#attributeValue_attributeID XMCDA-2_2_3_xsd_Complex_Type_xmcda_attributeValue.tmp#attributeValue_attributesSetID XMCDA-2_2_3_xsd_Complex_Type_xmcda_attributeValue.tmp#attributeValue_attributesSet XMCDA-2_2_3_xsd_Complex_Type_xmcda_attributeValue.tmp#attributeValue_value XMCDA-2_2_3_xsd_Complex_Type_xmcda_attributeValue.tmp#attributeValue_values XMCDA-2_2_3_xsd_Complex_Type_xmcda_attributeValue.tmp#attributeValue
Type xmcda:attributeValue
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children attributeID, attributesSet, attributesSetID, description, value, values
Instance

<attributeValue id="" mcdaConcept="" name="">
  <description>{0,1}</description>
  <attributeID>{1,1}</attributeID>
  <attributesSetID>{1,1}</attributesSetID>
  <attributesSet id="" mcdaConcept="" name="">{1,1}</attributesSet>
  <value id="" mcdaConcept="" name="">{1,1}</value>
  <values id="" mcdaConcept="" name="">{1,1}</values>
</attributeValue>
Attributes
QName Type Use
id xs:string optional
mcdaConcept xs:string optional
name xs:string optional
Source

<xs:element name="attributeValue" minOccurs="0" maxOccurs="unbounded" type="xmcda:attributeValue"/>
Element xmcda:XMCDA / attributesValues
Namespace No namespace
Diagram
Diagram XMCDA-2_2_3_xsd_Attribute_Group_xmcda_defaultAttributes.tmp#defaultAttributes XMCDA-2_2_3_xsd_Complex_Type_xmcda_attributesValues.tmp#attributesValues_description XMCDA-2_2_3_xsd_Complex_Type_xmcda_attributesValues.tmp#attributesValues_attributeValue XMCDA-2_2_3_xsd_Complex_Type_xmcda_attributesValues.tmp#attributesValues
Type xmcda:attributesValues
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children attributeValue, description
Instance

<attributesValues id="" mcdaConcept="" name="">
  <description>{0,1}</description>
  <attributeValue id="" mcdaConcept="" name="">{1,unbounded}</attributeValue>
</attributesValues>
Attributes
QName Type Use
id xs:string optional
mcdaConcept xs:string optional
name xs:string optional
Source

<xs:element name="attributesValues" minOccurs="0" maxOccurs="unbounded" type="xmcda:attributesValues"/>
Element xmcda:XMCDA / attributesComparisons
Namespace No namespace
Diagram
Diagram XMCDA-2_2_3_xsd_Attribute_Group_xmcda_defaultAttributes.tmp#defaultAttributes XMCDA-2_2_3_xsd_Complex_Type_xmcda_attributesComparisons.tmp#attributesComparisons_description XMCDA-2_2_3_xsd_Complex_Type_xmcda_attributesComparisons.tmp#attributesComparisons_valuation XMCDA-2_2_3_xsd_Complex_Type_xmcda_attributesComparisons.tmp#attributesComparisons_comparisonType XMCDA-2_2_3_xsd_Complex_Type_xmcda_attributesComparisons.tmp#attributesComparisons_pairs XMCDA-2_2_3_xsd_Complex_Type_xmcda_attributesComparisons.tmp#attributesComparisons
Type xmcda:attributesComparisons
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children comparisonType, description, pairs, valuation
Instance

<attributesComparisons id="" mcdaConcept="" name="">
  <description>{0,1}</description>
  <valuation id="" mcdaConcept="" name="">{0,1}</valuation>
  <comparisonType>{0,1}</comparisonType>
  <pairs>{1,1}</pairs>
</attributesComparisons>
Attributes
QName Type Use
id xs:string optional
mcdaConcept xs:string optional
name xs:string optional
Source

<xs:element name="attributesComparisons" minOccurs="0" maxOccurs="unbounded" type="xmcda:attributesComparisons"/>
Element xmcda:XMCDA / attributesLinearConstraints
Namespace No namespace
Diagram
Diagram XMCDA-2_2_3_xsd_Attribute_Group_xmcda_defaultAttributes.tmp#defaultAttributes XMCDA-2_2_3_xsd_Complex_Type_xmcda_attributesLinearConstraints.tmp#attributesLinearConstraints_constraint XMCDA-2_2_3_xsd_Complex_Type_xmcda_attributesLinearConstraints.tmp#attributesLinearConstraints_operator XMCDA-2_2_3_xsd_Complex_Type_xmcda_attributesLinearConstraints.tmp#attributesLinearConstraints
Type xmcda:attributesLinearConstraints
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children constraint, operator
Instance

<attributesLinearConstraints id="" mcdaConcept="" name="">
  <constraint id="" mcdaConcept="" name="">{0,unbounded}</constraint>
  <operator>{0,1}</operator>
</attributesLinearConstraints>
Attributes
QName Type Use
id xs:string optional
mcdaConcept xs:string optional
name xs:string optional
Source

<xs:element name="attributesLinearConstraints" minOccurs="0" maxOccurs="unbounded" type="xmcda:attributesLinearConstraints"/>
Element xmcda:XMCDA / attributesMatrix
Namespace No namespace
Diagram
Diagram XMCDA-2_2_3_xsd_Attribute_Group_xmcda_defaultAttributes.tmp#defaultAttributes XMCDA-2_2_3_xsd_Complex_Type_xmcda_attributesMatrix.tmp#attributesMatrix_description XMCDA-2_2_3_xsd_Complex_Type_xmcda_attributesMatrix.tmp#attributesMatrix_valuation XMCDA-2_2_3_xsd_Complex_Type_xmcda_attributesMatrix.tmp#attributesMatrix_row XMCDA-2_2_3_xsd_Complex_Type_xmcda_attributesMatrix.tmp#attributesMatrix
Type xmcda:attributesMatrix
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children description, row, valuation
Instance

<attributesMatrix id="" mcdaConcept="" name="">
  <description>{0,1}</description>
  <valuation id="" mcdaConcept="" name="">{0,1}</valuation>
  <row id="" mcdaConcept="" name="">{1,unbounded}</row>
</attributesMatrix>
Attributes
QName Type Use
id xs:string optional
mcdaConcept xs:string optional
name xs:string optional
Source

<xs:element name="attributesMatrix" minOccurs="0" maxOccurs="unbounded" type="xmcda:attributesMatrix"/>
Element xmcda:XMCDA / alternativeValue
Namespace No namespace
Diagram
Diagram XMCDA-2_2_3_xsd_Attribute_Group_xmcda_defaultAttributes.tmp#defaultAttributes XMCDA-2_2_3_xsd_Complex_Type_xmcda_alternativeValue.tmp#alternativeValue_description XMCDA-2_2_3_xsd_Complex_Type_xmcda_alternativeValue.tmp#alternativeValue_alternativeID XMCDA-2_2_3_xsd_Complex_Type_xmcda_alternativeValue.tmp#alternativeValue_alternativesSetID XMCDA-2_2_3_xsd_Complex_Type_xmcda_alternativeValue.tmp#alternativeValue_alternativesSet XMCDA-2_2_3_xsd_Complex_Type_xmcda_alternativeValue.tmp#alternativeValue_value XMCDA-2_2_3_xsd_Complex_Type_xmcda_alternativeValue.tmp#alternativeValue_values XMCDA-2_2_3_xsd_Complex_Type_xmcda_alternativeValue.tmp#alternativeValue
Type xmcda:alternativeValue
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children alternativeID, alternativesSet, alternativesSetID, description, value, values
Instance

<alternativeValue id="" mcdaConcept="" name="">
  <description>{0,1}</description>
  <alternativeID>{1,1}</alternativeID>
  <alternativesSetID>{1,1}</alternativesSetID>
  <alternativesSet id="" mcdaConcept="" name="">{1,1}</alternativesSet>
  <value id="" mcdaConcept="" name="">{1,1}</value>
  <values id="" mcdaConcept="" name="">{1,1}</values>
</alternativeValue>
Attributes
QName Type Use
id xs:string optional
mcdaConcept xs:string optional
name xs:string optional
Source

<xs:element name="alternativeValue" minOccurs="0" maxOccurs="unbounded" type="xmcda:alternativeValue"/>
Element xmcda:XMCDA / alternativesValues
Namespace No namespace
Diagram
Diagram XMCDA-2_2_3_xsd_Attribute_Group_xmcda_defaultAttributes.tmp#defaultAttributes XMCDA-2_2_3_xsd_Complex_Type_xmcda_alternativesValues.tmp#alternativesValues_description XMCDA-2_2_3_xsd_Complex_Type_xmcda_alternativesValues.tmp#alternativesValues_alternativeValue XMCDA-2_2_3_xsd_Complex_Type_xmcda_alternativesValues.tmp#alternativesValues
Type xmcda:alternativesValues
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children alternativeValue, description
Instance

<alternativesValues id="" mcdaConcept="" name="">
  <description>{0,1}</description>
  <alternativeValue id="" mcdaConcept="" name="">{1,unbounded}</alternativeValue>
</alternativesValues>
Attributes
QName Type Use
id xs:string optional
mcdaConcept xs:string optional
name xs:string optional
Source

<xs:element name="alternativesValues" minOccurs="0" maxOccurs="unbounded" type="xmcda:alternativesValues"/>
Element xmcda:XMCDA / alternativesComparisons
Namespace No namespace
Diagram
Diagram XMCDA-2_2_3_xsd_Attribute_Group_xmcda_defaultAttributes.tmp#defaultAttributes XMCDA-2_2_3_xsd_Complex_Type_xmcda_alternativesComparisons.tmp#alternativesComparisons_description XMCDA-2_2_3_xsd_Complex_Type_xmcda_alternativesComparisons.tmp#alternativesComparisons_valuation XMCDA-2_2_3_xsd_Complex_Type_xmcda_alternativesComparisons.tmp#alternativesComparisons_comparisonType XMCDA-2_2_3_xsd_Complex_Type_xmcda_alternativesComparisons.tmp#alternativesComparisons_criterionID XMCDA-2_2_3_xsd_Complex_Type_xmcda_alternativesComparisons.tmp#alternativesComparisons_pairs XMCDA-2_2_3_xsd_Complex_Type_xmcda_alternativesComparisons.tmp#alternativesComparisons
Type xmcda:alternativesComparisons
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children comparisonType, criterionID, description, pairs, valuation
Instance

<alternativesComparisons id="" mcdaConcept="" name="">
  <description>{0,1}</description>
  <valuation id="" mcdaConcept="" name="">{0,1}</valuation>
  <comparisonType>{0,1}</comparisonType>
  <criterionID>{0,1}</criterionID>
  <pairs>{1,1}</pairs>
</alternativesComparisons>
Attributes
QName Type Use
id xs:string optional
mcdaConcept xs:string optional
name xs:string optional
Source

<xs:element name="alternativesComparisons" minOccurs="0" maxOccurs="unbounded" type="xmcda:alternativesComparisons"/>
Element xmcda:XMCDA / alternativesLinearConstraints
Namespace No namespace
Diagram
Diagram XMCDA-2_2_3_xsd_Attribute_Group_xmcda_defaultAttributes.tmp#defaultAttributes XMCDA-2_2_3_xsd_Complex_Type_xmcda_alternativesLinearConstraints.tmp#alternativesLinearConstraints_constraint XMCDA-2_2_3_xsd_Complex_Type_xmcda_alternativesLinearConstraints.tmp#alternativesLinearConstraints_operator XMCDA-2_2_3_xsd_Complex_Type_xmcda_alternativesLinearConstraints.tmp#alternativesLinearConstraints
Type xmcda:alternativesLinearConstraints
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children constraint, operator
Instance

<alternativesLinearConstraints id="" mcdaConcept="" name="">
  <constraint id="" mcdaConcept="" name="">{0,unbounded}</constraint>
  <operator>{0,1}</operator>
</alternativesLinearConstraints>
Attributes
QName Type Use
id xs:string optional
mcdaConcept xs:string optional
name xs:string optional
Source

<xs:element name="alternativesLinearConstraints" minOccurs="0" maxOccurs="unbounded" type="xmcda:alternativesLinearConstraints"/>
Element xmcda:XMCDA / alternativesMatrix
Namespace No namespace
Diagram
Diagram XMCDA-2_2_3_xsd_Attribute_Group_xmcda_defaultAttributes.tmp#defaultAttributes XMCDA-2_2_3_xsd_Complex_Type_xmcda_alternativesMatrix.tmp#alternativesMatrix_description XMCDA-2_2_3_xsd_Complex_Type_xmcda_alternativesMatrix.tmp#alternativesMatrix_valuation XMCDA-2_2_3_xsd_Complex_Type_xmcda_alternativesMatrix.tmp#alternativesMatrix_row XMCDA-2_2_3_xsd_Complex_Type_xmcda_alternativesMatrix.tmp#alternativesMatrix
Type xmcda:alternativesMatrix
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children description, row, valuation
Instance

<alternativesMatrix id="" mcdaConcept="" name="">
  <description>{0,1}</description>
  <valuation id="" mcdaConcept="" name="">{0,1}</valuation>
  <row id="" mcdaConcept="" name="">{1,unbounded}</row>
</alternativesMatrix>
Attributes
QName Type Use
id xs:string optional
mcdaConcept xs:string optional
name xs:string optional
Source

<xs:element name="alternativesMatrix" minOccurs="0" maxOccurs="unbounded" type="xmcda:alternativesMatrix"/>
Element xmcda:XMCDA / alternativesCriteriaValues
Namespace No namespace
Diagram
Diagram XMCDA-2_2_3_xsd_Attribute_Group_xmcda_defaultAttributes.tmp#defaultAttributes XMCDA-2_2_3_xsd_Complex_Type_xmcda_alternativesCriteriaValues.tmp#alternativesCriteriaValues_description XMCDA-2_2_3_xsd_Complex_Type_xmcda_alternativesCriteriaValues.tmp#alternativesCriteriaValues_alternativeCriteriaValue XMCDA-2_2_3_xsd_Complex_Type_xmcda_alternativesCriteriaValues.tmp#alternativesCriteriaValues
Type xmcda:alternativesCriteriaValues
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children alternativeCriteriaValue, description
Instance

<alternativesCriteriaValues id="" mcdaConcept="" name="">
  <description>{0,1}</description>
  <alternativeCriteriaValue id="" mcdaConcept="" name="">{1,unbounded}</alternativeCriteriaValue>
</alternativesCriteriaValues>
Attributes
QName Type Use
id xs:string optional
mcdaConcept xs:string optional
name xs:string optional
Source

<xs:element name="alternativesCriteriaValues" minOccurs="0" maxOccurs="unbounded" type="xmcda:alternativesCriteriaValues"/>
Element xmcda:XMCDA / categoriesProfiles
Namespace No namespace
Diagram
Diagram XMCDA-2_2_3_xsd_Attribute_Group_xmcda_defaultAttributes.tmp#defaultAttributes XMCDA-2_2_3_xsd_Complex_Type_xmcda_categoriesProfiles.tmp#categoriesProfiles_description XMCDA-2_2_3_xsd_Complex_Type_xmcda_categoriesProfiles.tmp#categoriesProfiles_categoryProfile XMCDA-2_2_3_xsd_Complex_Type_xmcda_categoriesProfiles.tmp#categoriesProfiles
Type xmcda:categoriesProfiles
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children categoryProfile, description
Instance

<categoriesProfiles id="" mcdaConcept="" name="">
  <description>{0,1}</description>
  <categoryProfile id="" mcdaConcept="" name="">{0,unbounded}</categoryProfile>
</categoriesProfiles>
Attributes
QName Type Use
id xs:string optional
mcdaConcept xs:string optional
name xs:string optional
Source

<xs:element name="categoriesProfiles" minOccurs="0" maxOccurs="unbounded" type="xmcda:categoriesProfiles"/>
Element xmcda:XMCDA / categoriesContents
Namespace No namespace
Diagram
Diagram XMCDA-2_2_3_xsd_Attribute_Group_xmcda_defaultAttributes.tmp#defaultAttributes XMCDA-2_2_3_xsd_Complex_Type_xmcda_categoriesContents.tmp#categoriesContents_description XMCDA-2_2_3_xsd_Complex_Type_xmcda_categoriesContents.tmp#categoriesContents_categoryContent XMCDA-2_2_3_xsd_Complex_Type_xmcda_categoriesContents.tmp#categoriesContents
Type xmcda:categoriesContents
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children categoryContent, description
Instance

<categoriesContents id="" mcdaConcept="" name="">
  <description>{0,1}</description>
  <categoryContent id="" mcdaConcept="" name="">{1,unbounded}</categoryContent>
</categoriesContents>
Attributes
QName Type Use
id xs:string optional
mcdaConcept xs:string optional
name xs:string optional
Source

<xs:element name="categoriesContents" minOccurs="0" maxOccurs="unbounded" type="xmcda:categoriesContents"/>
Element xmcda:XMCDA / alternativesAffectations
Namespace No namespace
Diagram
Diagram XMCDA-2_2_3_xsd_Attribute_Group_xmcda_defaultAttributes.tmp#defaultAttributes XMCDA-2_2_3_xsd_Complex_Type_xmcda_alternativesAffectations.tmp#alternativesAffectations_description XMCDA-2_2_3_xsd_Complex_Type_xmcda_alternativesAffectations.tmp#alternativesAffectations_alternativeAffectation XMCDA-2_2_3_xsd_Complex_Type_xmcda_alternativesAffectations.tmp#alternativesAffectations
Type xmcda:alternativesAffectations
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children alternativeAffectation, description
Instance

<alternativesAffectations id="" mcdaConcept="" name="">
  <description>{0,1}</description>
  <alternativeAffectation id="" mcdaConcept="" name="">{1,unbounded}</alternativeAffectation>
</alternativesAffectations>
Attributes
QName Type Use
id xs:string optional
mcdaConcept xs:string optional
name xs:string optional
Source

<xs:element name="alternativesAffectations" minOccurs="0" maxOccurs="unbounded" type="xmcda:alternativesAffectations"/>
Element xmcda:XMCDA / categoryValue
Namespace No namespace
Diagram
Diagram XMCDA-2_2_3_xsd_Attribute_Group_xmcda_defaultAttributes.tmp#defaultAttributes XMCDA-2_2_3_xsd_Complex_Type_xmcda_categoryValue.tmp#categoryValue_description XMCDA-2_2_3_xsd_Complex_Type_xmcda_categoryValue.tmp#categoryValue_categoryID XMCDA-2_2_3_xsd_Complex_Type_xmcda_categoryValue.tmp#categoryValue_categoriesSetID XMCDA-2_2_3_xsd_Complex_Type_xmcda_categoryValue.tmp#categoryValue_categoriesSet XMCDA-2_2_3_xsd_Complex_Type_xmcda_categoryValue.tmp#categoryValue_value XMCDA-2_2_3_xsd_Complex_Type_xmcda_categoryValue.tmp#categoryValue_values XMCDA-2_2_3_xsd_Complex_Type_xmcda_categoryValue.tmp#categoryValue
Type xmcda:categoryValue
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children categoriesSet, categoriesSetID, categoryID, description, value, values
Instance

<categoryValue id="" mcdaConcept="" name="">
  <description>{0,1}</description>
  <categoryID>{1,1}</categoryID>
  <categoriesSetID>{1,1}</categoriesSetID>
  <categoriesSet id="" mcdaConcept="" name="">{1,1}</categoriesSet>
  <value id="" mcdaConcept="" name="">{1,1}</value>
  <values id="" mcdaConcept="" name="">{1,1}</values>
</categoryValue>
Attributes
QName Type Use
id xs:string optional
mcdaConcept xs:string optional
name xs:string optional
Source

<xs:element name="categoryValue" minOccurs="0" maxOccurs="unbounded" type="xmcda:categoryValue"/>
Element xmcda:XMCDA / categoriesValues
Namespace No namespace
Diagram
Diagram XMCDA-2_2_3_xsd_Attribute_Group_xmcda_defaultAttributes.tmp#defaultAttributes XMCDA-2_2_3_xsd_Complex_Type_xmcda_categoriesValues.tmp#categoriesValues_description XMCDA-2_2_3_xsd_Complex_Type_xmcda_categoriesValues.tmp#categoriesValues_categoryValue XMCDA-2_2_3_xsd_Complex_Type_xmcda_categoriesValues.tmp#categoriesValues
Type xmcda:categoriesValues
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children categoryValue, description
Instance

<categoriesValues id="" mcdaConcept="" name="">
  <description>{0,1}</description>
  <categoryValue id="" mcdaConcept="" name="">{1,unbounded}</categoryValue>
</categoriesValues>
Attributes
QName Type Use
id xs:string optional
mcdaConcept xs:string optional
name xs:string optional
Source

<xs:element name="categoriesValues" minOccurs="0" maxOccurs="unbounded" type="xmcda:categoriesValues"/>
Element xmcda:XMCDA / categoriesComparisons
Namespace No namespace
Diagram
Diagram XMCDA-2_2_3_xsd_Attribute_Group_xmcda_defaultAttributes.tmp#defaultAttributes XMCDA-2_2_3_xsd_Complex_Type_xmcda_categoriesComparisons.tmp#categoriesComparisons_description XMCDA-2_2_3_xsd_Complex_Type_xmcda_categoriesComparisons.tmp#categoriesComparisons_valuation XMCDA-2_2_3_xsd_Complex_Type_xmcda_categoriesComparisons.tmp#categoriesComparisons_comparisonType XMCDA-2_2_3_xsd_Complex_Type_xmcda_categoriesComparisons.tmp#categoriesComparisons_pairs XMCDA-2_2_3_xsd_Complex_Type_xmcda_categoriesComparisons.tmp#categoriesComparisons
Type xmcda:categoriesComparisons
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children comparisonType, description, pairs, valuation
Instance

<categoriesComparisons id="" mcdaConcept="" name="">
  <description>{0,1}</description>
  <valuation id="" mcdaConcept="" name="">{0,1}</valuation>
  <comparisonType>{0,1}</comparisonType>
  <pairs>{1,1}</pairs>
</categoriesComparisons>
Attributes
QName Type Use
id xs:string optional
mcdaConcept xs:string optional
name xs:string optional
Source

<xs:element name="categoriesComparisons" minOccurs="0" maxOccurs="unbounded" type="xmcda:categoriesComparisons"/>
Element xmcda:XMCDA / categoriesLinearConstraints
Namespace No namespace
Diagram
Diagram XMCDA-2_2_3_xsd_Attribute_Group_xmcda_defaultAttributes.tmp#defaultAttributes XMCDA-2_2_3_xsd_Complex_Type_xmcda_categoriesLinearConstraints.tmp#categoriesLinearConstraints_constraint XMCDA-2_2_3_xsd_Complex_Type_xmcda_categoriesLinearConstraints.tmp#categoriesLinearConstraints_operator XMCDA-2_2_3_xsd_Complex_Type_xmcda_categoriesLinearConstraints.tmp#categoriesLinearConstraints
Type xmcda:categoriesLinearConstraints
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children constraint, operator
Instance

<categoriesLinearConstraints id="" mcdaConcept="" name="">
  <constraint id="" mcdaConcept="" name="">{0,unbounded}</constraint>
  <operator>{0,1}</operator>
</categoriesLinearConstraints>
Attributes
QName Type Use
id xs:string optional
mcdaConcept xs:string optional
name xs:string optional
Source

<xs:element name="categoriesLinearConstraints" minOccurs="0" maxOccurs="unbounded" type="xmcda:categoriesLinearConstraints"/>
Element xmcda:XMCDA / categoriesMatrix
Namespace No namespace
Diagram
Diagram XMCDA-2_2_3_xsd_Attribute_Group_xmcda_defaultAttributes.tmp#defaultAttributes XMCDA-2_2_3_xsd_Complex_Type_xmcda_criteriaMatrix.tmp#criteriaMatrix_description XMCDA-2_2_3_xsd_Complex_Type_xmcda_criteriaMatrix.tmp#criteriaMatrix_valuation XMCDA-2_2_3_xsd_Complex_Type_xmcda_criteriaMatrix.tmp#criteriaMatrix_row XMCDA-2_2_3_xsd_Complex_Type_xmcda_criteriaMatrix.tmp#criteriaMatrix
Type xmcda:criteriaMatrix
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children description, row, valuation
Instance

<categoriesMatrix id="" mcdaConcept="" name="">
  <description>{0,1}</description>
  <valuation id="" mcdaConcept="" name="">{0,1}</valuation>
  <row id="" mcdaConcept="" name="">{1,unbounded}</row>
</categoriesMatrix>
Attributes
QName Type Use
id xs:string optional
mcdaConcept xs:string optional
name xs:string optional
Source

<xs:element name="categoriesMatrix" minOccurs="0" maxOccurs="unbounded" type="xmcda:criteriaMatrix"/>
